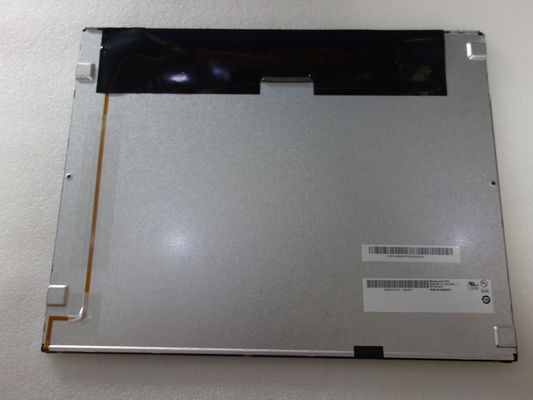

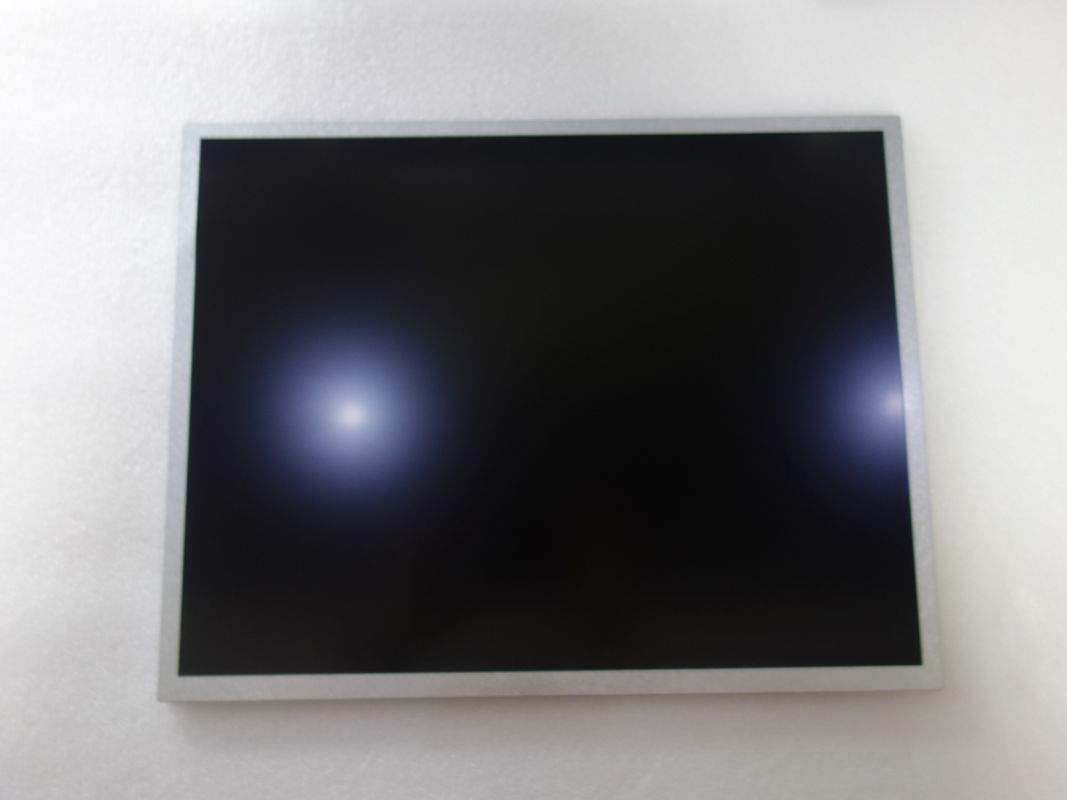

G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare

G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare
G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare

Large Image :  G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G150XAN01.2
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare

Description
Brand: AUO Model: G150XAN01.2
Diagonal Size: 15.0 Inch Type: A-Si TFT-LCD , LCM
Pixel Format 1024(RGB)×768 [XGA: 2 Touch Panel: Without
High Light:

LCM 15 Inch Lcd Display Panel

,

AUO 15 Inch Lcd Display Panel

,

G150XAN01.2

G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare



G150XAN01.2 AUO 15" LCM 1024×768 Without Touchscreen And Industrial



AUO G150XAN01.2 Mechanical Details

Pixel Features :

Pixel Format

1024(RGB)×768, XGA

Dot Pitch

0.099×0.297 mm (H×V)

Configuration

RGB Vertical Stripe

Pixel Pitch

0.297×0.297 mm (H×V) [85PPI]

Mechanical Size :

Display Area

304.128×228.096 mm (H×V)

Bezel Area

309.9×236.3 mm (H×V)

Outline Dim.

326.5×253.5 mm (H×V)

Outline Depth

6.8 (Max.) mm

Outline Features :

Form Factor

Flat Rectangle

Orientation

Landscape type

Aspect Ratio

4:3 (H:V)

Shape Style



Holes & Brackets :

Side mounting holes (4-M2) on left, right bezel

Other Features :

Weight

660g (Max.)

Surface

Antiglare, Hard coating (3H)

  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.





AUO G150XAN01.2 Optical Details

Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AHVA, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.2M (6-bit + FRC)
Color Temperature
6485K
Uniformity
1.25/1.33 (Typ./Max.)(9 points) G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare 0
1931 Color Gamlt :
NTSC Ratio
60%
sRGB
78% coverage
Adobe RGB
62% coverage
DCI-P3
62% coverage
Rec.2020
45% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information





Panel Model Brand Size
X139BLB01.0 AUO 1.39"
T430HVN01.6 CELL AUO 43"
B101EAN01.2 CELL AUO 10.1"
H497EAN01.0 AUO 5.0"
T320XVN02.C CELL AUO 31.5"
T320HVN05.8 CELL AUO 31.5"
T500HVN07.5 CELL AUO 50"
B070EAN02.0 CELL AUO 7.0"
M320QAN01.0 CELL AUO 32.0"
H546TAN02.0 AUO 5.5"
H598TAN01.0 AUO 6.0"
H546DAN03.3 AUO 5.5"







Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.





Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed



G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare 1G150XAN01.2 AUO LCM 15 Inch Lcd Display Panel 1024×768 Antiglare 2
