Product Details:
|
| Panel Brand: | AUO | Panel Model: | G121EAN01.1 |
|---|---|---|---|
| Panel Size: | 12.1 Inch | Panel Type: | A-Si TFT-LCD, LCM |
| Resolution: | 1280(RGB)×800, WXGA, 124PPI | Touch Screen: | Without |
| High Light: | G121EAN01.1 AUO LCD Panel,AUO LCD Panel 12.1,1280×800 lcd display panel |
||

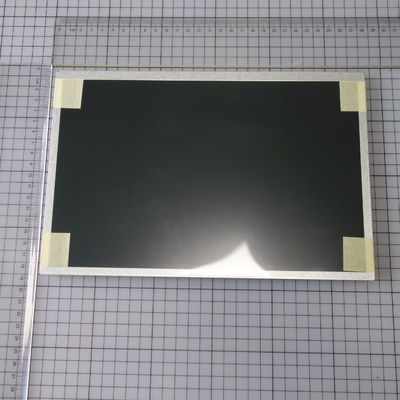

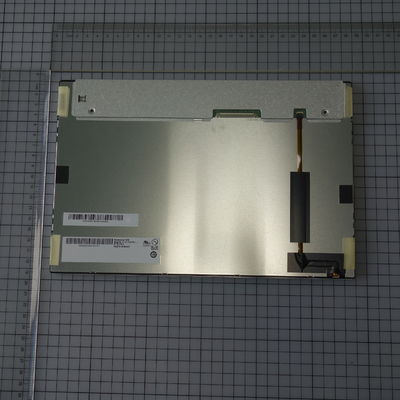

G121EAN01.1 AUO LCD Panel 12.1" LCM 1280×800 For Medical Imaging
G121EAN01.1 AUO 12.1" LCM 1280×800 Without Touchscreen And Industrial,Medical Imaging
| Screen Size : | 12.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.068×0.204 mm | 0.204×0.204 mm [124PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 261.12×163.2 mm | 264.22×168.12 mm | 278×184 mm | 9.29 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 480g (Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) |
25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 73% | 99% | 75% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.33 (Max.)(5 points) |
||
