G121EAN01.0 LCM 12.1 Inch Lcd Panel Resolution 1280×800 124PPI

G121EAN01.0 LCM 12.1 Inch Lcd Panel Resolution 1280×800 124PPI
G121EAN01.0 LCM 12.1 Inch Lcd Panel Resolution 1280×800 124PPI G121EAN01.0 LCM 12.1 Inch Lcd Panel Resolution 1280×800 124PPI

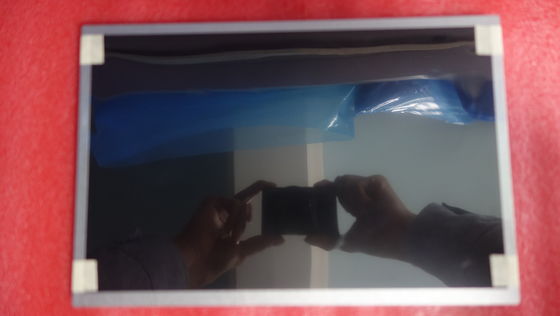

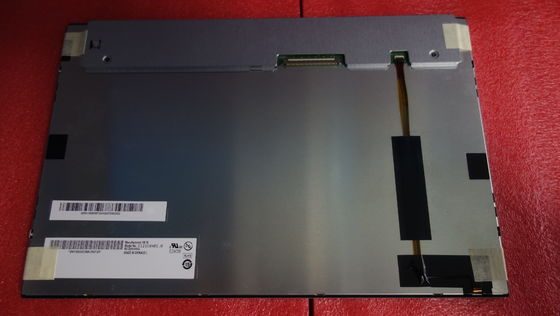

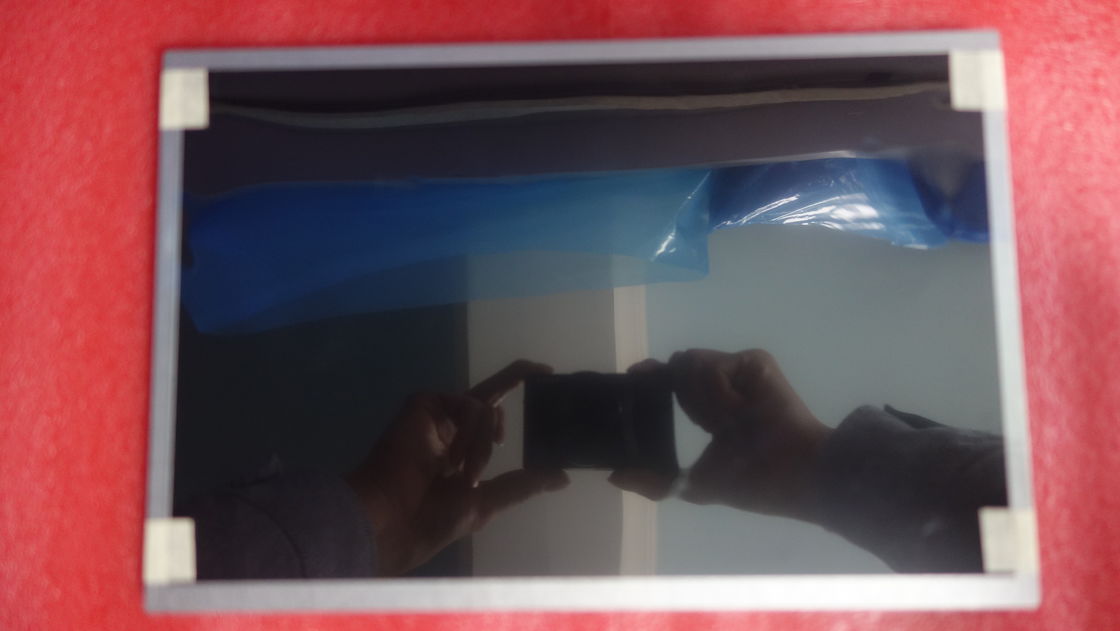

Large Image :  G121EAN01.0 LCM 12.1 Inch Lcd Panel Resolution 1280×800 124PPI

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G121EAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

G121EAN01.0 LCM 12.1 Inch Lcd Panel Resolution 1280×800 124PPI

Description
Panel Brand: AUO Panel Model: G121EAN01.0
Panel Size: 12.1 Inch Panel Type: A-Si TFT-LCD , LCM
Resolution: 1280(RGB)×800, WXGA, 124PPI Touch Screen: Without
High Light:

LCM 12.1 Inch Lcd Panel

,

124PPI 12.1 Inch Lcd Panel

,

G121EAN01.0 Lcd Panel

G121EAN01.0 LCM 12.1 Inch Lcd Panel Resolution 1280×800 124PPI



G121EAN01.0 AUO 12.1" LCM 1280×800 Without Touchscreen And Industrial



AUO G121EAN01.0 Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×800, WXGA
Dot Pitch
0.068×0.204 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.204×0.204 mm (H×V) [124PPI]
Mechanical Size :
Display Area
261.12×163.2 mm (H×V)
Outline Dim.
264.22×168.12 mm (H×V)
Outline Dim.
278×184 mm (H×V)
Outline Depth
7.32/9.29 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:10 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M2) on left, right bezel
Other Features :
Weight
480g (Max.)
Surface
Antiglare, Hard coating (3H)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct



AUO G121EAN01.0 Optical Details

Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
99% coverage
Adobe RGB
75% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct
