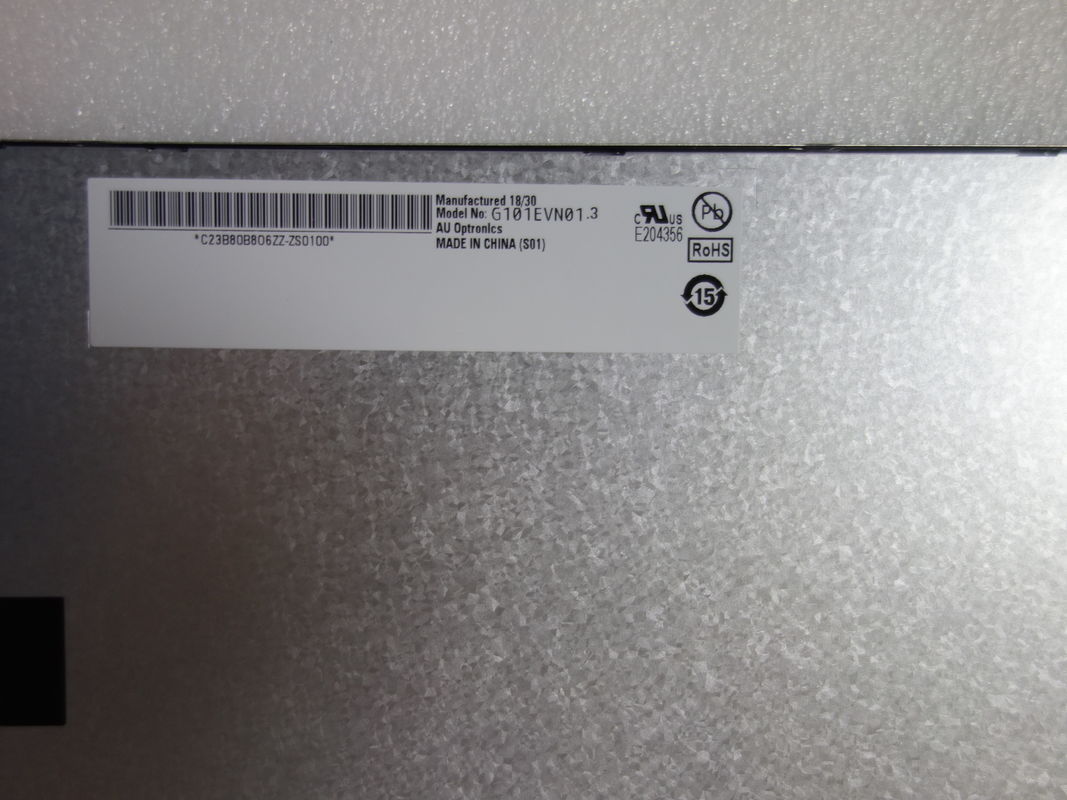

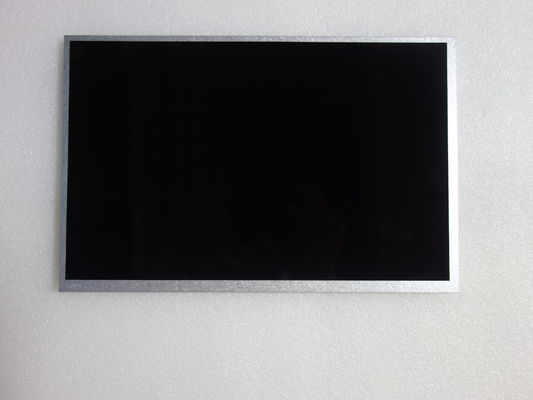

149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating

149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating
149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating 149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating

Large Image :  149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating

Product Details:
Place of Origin: TaiWan
Brand Name: AUO
Model Number: G101EVN01.3
Payment & Shipping Terms:
Minimum Order Quantity: 500
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: Western Union,PAPLY,BANK TRANSFER
Supply Ability: 500

149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating

Description
Brand: AUO Model: G101EVN01.3
Diagonal Size: 10.1 Inch Type: A-Si TFT-LCD , LCM
Pixel Format: 1280(RGB)×800 [WXGA] 149PPI Touch Panel: Without
High Light:

LCM AUO LCD Panel

,

149PPI AUO LCD Panel

,

G101EVN01.3

149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating



G101EVN01.3 AUO 10.1" LCM 1280×800 Without Touch Panel And Industrial

AUO G101EVN01.3 Mechanical Details

Pixel Features :
Resolution
1280(RGB)×800, WXGA
Dot Pitch(mm)
0.0565×0.1695 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1695×0.1695 (H×V) [149PPI]
Mechanical Size :
Active Area(mm)
216.96(H) × 135.6(V)
Bezel Area(mm)
220.36(H) × 139.1(V)
Outline Dim.(mm)
227.91(H) × 148(V)
Depth(mm)
8.34 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
16:10 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
350g (Max.)
Treatment
Hard coating, Reflection 1.5% (Typ.)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct
  •

AUO G101EVN01.3 Optical Details

Basic Information :
Luminance(cd/m²)
500 (Typ.)
Contrast Ratio
1300:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
MVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature
6485K
White Uniformity
1.43 (Max.)(5 points) 149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating 0
1931 Color Gamlt :
NTSC Ratio
47%
sRGB
66% coverage
Adobe RGB
49% coverage
DCI-P3
49% coverage
Rec.2020
35% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
  • Disclaimer : Inputted by panelook engineers according to datasheet, but we cannot guarantee the spec listed is entirely correct.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information





Panel Model Brand Size
M270HVN02.3 CELL AUO 27.0"
M270HVN02.2 CELL AUO 27.0"
M270HVN02.1 CELL AUO 27.0"
M270DTN01.0 CELL AUO 27.0"
T320HVN05.7 CELL AUO 31.5"
T320HVN05.4 CELL AUO 31.5"
T215HVN01.2 CELL AUO 21.5"
B070ATN02.0 CELL AUO 7.0"
M238DAN01.3 CELL AUO 23.8"
B070AAN01.0 AUO 7.0"
M238DAN01.1 CELL AUO 23.8"
M270DAN02.0 CELL AUO 27.0"
H598DAN03.0 AUO 6.0"
H546TAN02.3 AUO 5.5"
G173HW01 V0 CELL AUO 17.3"
T320HVN05.A CELL AUO 31.5"
B080EAN04.1 CELL AUO 8.0"
T500HVN08.8 CELL AUO 50"
H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"
B080XAN03.5 AUO

7.9"



Packaging & Shipping:

Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.





149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating 1149PPI 10.1 Inch LCM AUO LCD Panel G101EVN01.3 Hard Coating 2
