Product Details:
|
| Brand: | AUO | Model: | G101EVN01.2 |
|---|---|---|---|
| Diagonal Size: | 10.1 Inch | Type: | A-Si TFT-LCD, LCM |
| Pixel Format: | 1280(RGB)×800 [WXGA] 149PPI | Touch Panel: | Without |
| High Light: | 10.1 lcd panel,G101EVN01.2,LCM 10.1 lcd panel |
||

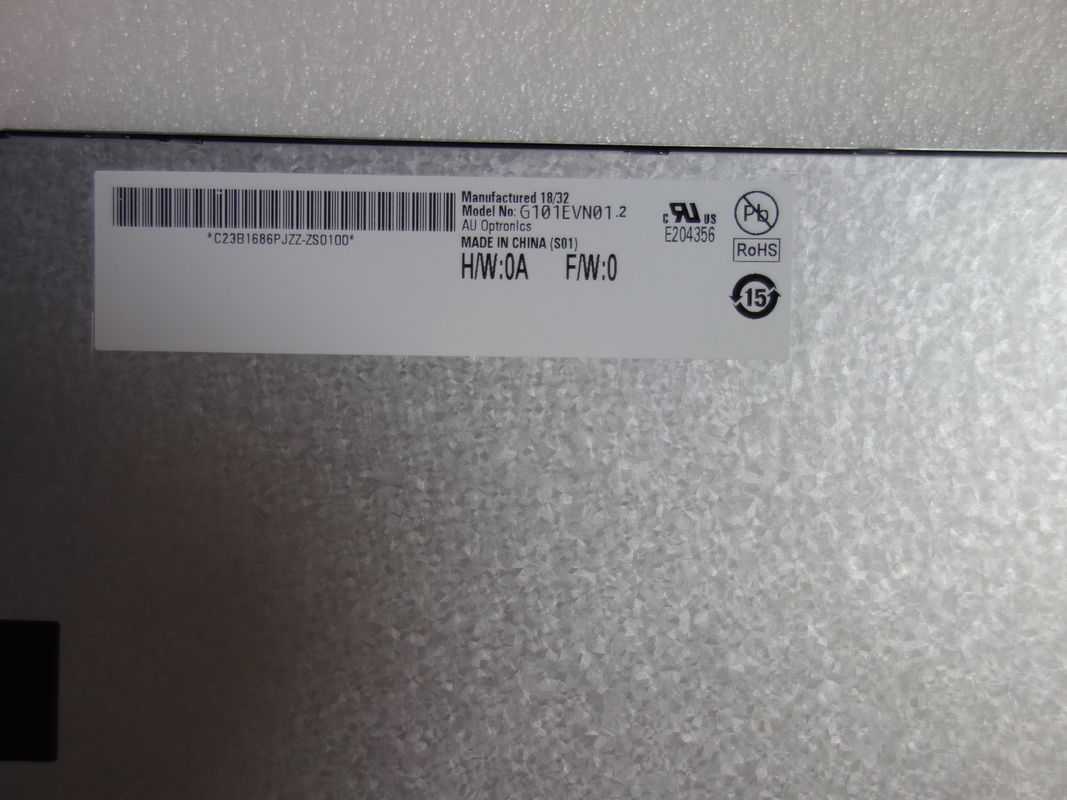

G101EVN01.2 10.1 Lcd Panel LCM 1280×800 Without Touch Panel
G101EVN01.2 AUO 10.1" LCM 1280×800 Without Touch Panel And Industrial
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | MVA, Normally Black, Transmissive | 1300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K/16.2M (6-bit / 6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 49% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(5 points)  |
||
| Panel Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×800 [WXGA] | RGB Vertical Stripe | 0.1695×0.1695 [149PPI] | 0.0565×0.1695 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 216.96(H) × 135.6(V) | 220.36(H) × 139.1(V) | 227.91(H) × 148(V) | 8.34 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| - | - | Hard coating, Reflection 1.5% (Typ.) | ||
