Product Details:
|
| Brand: | AUO | Model: | G101EAN01.0 |
|---|---|---|---|
| Pixel Format: | 800(RGB)×1280 [WXGA] 150PPI | Configuration: | RGB Vertical Stripe |
| Active Area: | 135.36(H)×216.576(V) Mm | Touch Panel: | Without |
| High Light: | G101EAN01.0 AUO LCD Panel,10.1 inch AUO LCD Panel,G101EAN01.0 |
||

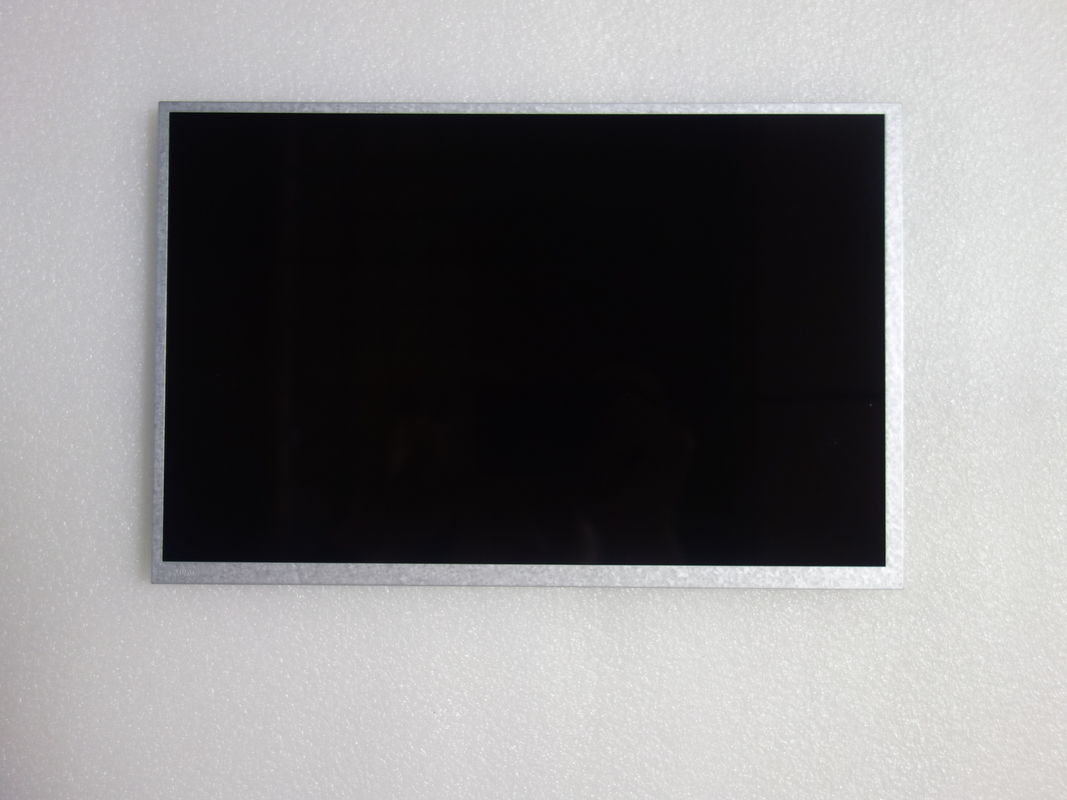

G101EAN01.0 AUO 10.1" LCM 800×1280 Without Touch Panel And Industrial
| Basic Detail : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
AUO G101EAN01.0 Mechanical Details
|
Pixel Features : |
Number of Pixel 800(RGB)×1280, WXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0564×0.1692 mm Pixel Pitch(W×H) 0.1692×0.1692 mm [150PPI] |
|---|---|
|
Physical Size : |
Active Viewing 135.36(W)×216.576(H) mm Overall Dim. 150.3(W)×232.43(H) mm Bezel Opening - Overall Depth 2.6/4.8 (Typ./Max.) mm |
|
Outline Features : |
Form Shape Flat Rectangle Orientation Portrait type Aspect Ratio(W:H) 10:16 Shape Style
|
|
Fixation : |
Without |
|
Other Detail : |
Mass 161g (Max.) Surface Antiglare, Antireflection |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| Panel Model | Brand | Size |
| X139BLB01.0 | AUO | 1.39" |
| H381DLN01.0 | AUO | 3.8" |
| H497TLB01.4 | AUO | 5.0" |
| H163QLN01.0 | AUO | 1.63" |
| H139BLN01.2 | AUO | 1.39" |
| H500TLB01.0 | AUO | 5.0" |
| X546DLB01.0 | AUO | 5.5" |
| H546DLB01.1 | AUO | 5.5" |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
long-term partner:
* Products are sold to more than 20 countries.
Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
