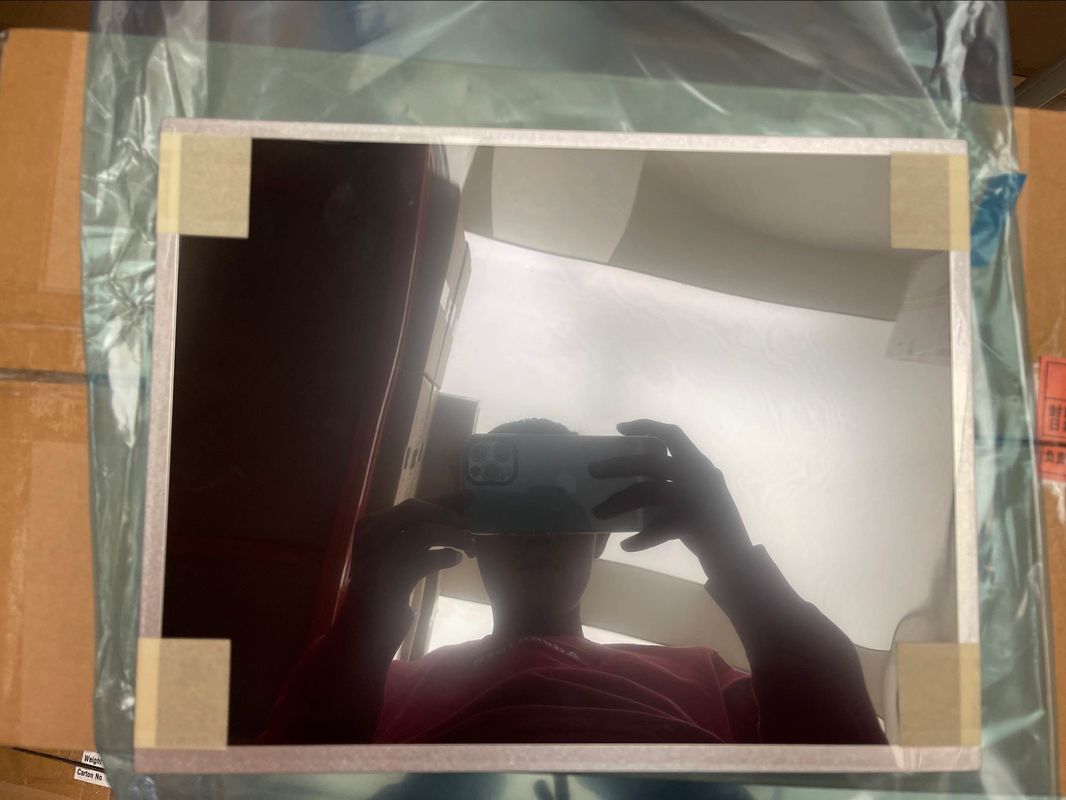

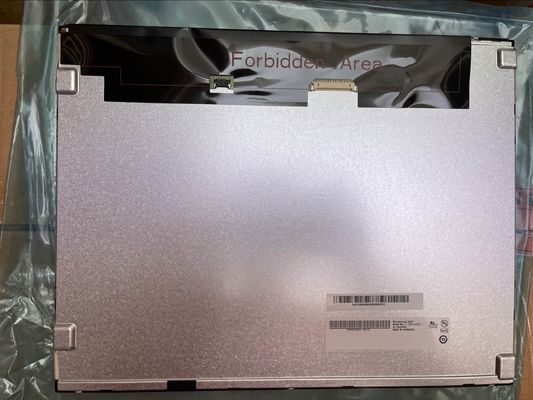

LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating

LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating
LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating

Large Image :  LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G150XAN02.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating

Description
Brightness: 800 Cd/m² (Typ.) Viewing Angle: 89/89/89/89 (Typ.)(CR≥10)
Operating Temp.: -20 ~ 75 °C Signal Interface: LVDS (1 Ch, 8-bit) , 20 Pins Connector
Contrast Ratio: 1000:1 (Typ.) (TM) Display Mode: AHVA, Normally Black, Transmissive
Lamp Type: WLED , 50K Hours , With LED Driver Touch Screen: Without
High Light:

6bit LVDS AUO LCD Panel

,

15" AUO LCD Panel

,

G150XAN02.1 AUO Panel

LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating



Description Of AUO LCD Panel

G150XAN02.1 is a 15.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver0.1 which was released out on 9 10 2018, G150XAN02.1 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G150XAN02.1 Mechanical Details

Pixel Features : Resolution 1024(RGB)×768, XGA Dot Pitch(mm) 0.099×0.297 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.297×0.297 (H×V) [85PPI]
Mechanical Size : Active Area(mm) 304.128(H) × 228.096(V) Bezel Area(mm) 309.9(H) × 236.36(V)
Outline Dim.(mm) 326.5(H) × 253.5(V) Depth(mm) 9.0 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M2) on left, right bezel
Other Spec : Weight 920g (Max.) Treatment Antiglare, Hard coating (3H)

AUO G150XAN02.1 Optical Details

Basic Information : Luminance(cd/m²) 800 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating 0 Display Mode AHVA, Normally Black, Transmissive
Best View on Symmetry Response(ms) 25 (Typ.)(Tr+Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.2M (6-bit + FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 60% sRGB 78% coverage
Adobe RGB 62% coverage DCI-P3 62% coverage
Rec.2020 45% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -



We also have other industrial LCD panels, pls contact to us for the further information



M238DAN01.3 CELL AUO 23.8"
B070AAN01.0 AUO 7.0"
M238DAN01.1 CELL AUO 23.8"
M270DAN02.0 CELL AUO 27.0"
H598DAN03.0 AUO 6.0"
H546TAN02.3 AUO 5.5"
G173HW01 V0 CELL AUO 17.3"
T320HVN05.A CELL AUO 31.5"
B080EAN04.1 CELL AUO 8.0"
T500HVN08.8 CELL AUO 50"
H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"



Application Of AUO LCD Panel G150XAN02.1

1. Industrial Display

2. Medical Display

3. Handheld & PDA

4. Commercial Display





FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.



Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.

LVDS G150XAN02.1 15" 1024×768 6bit AUO LCD Panel Hard Coating 2
