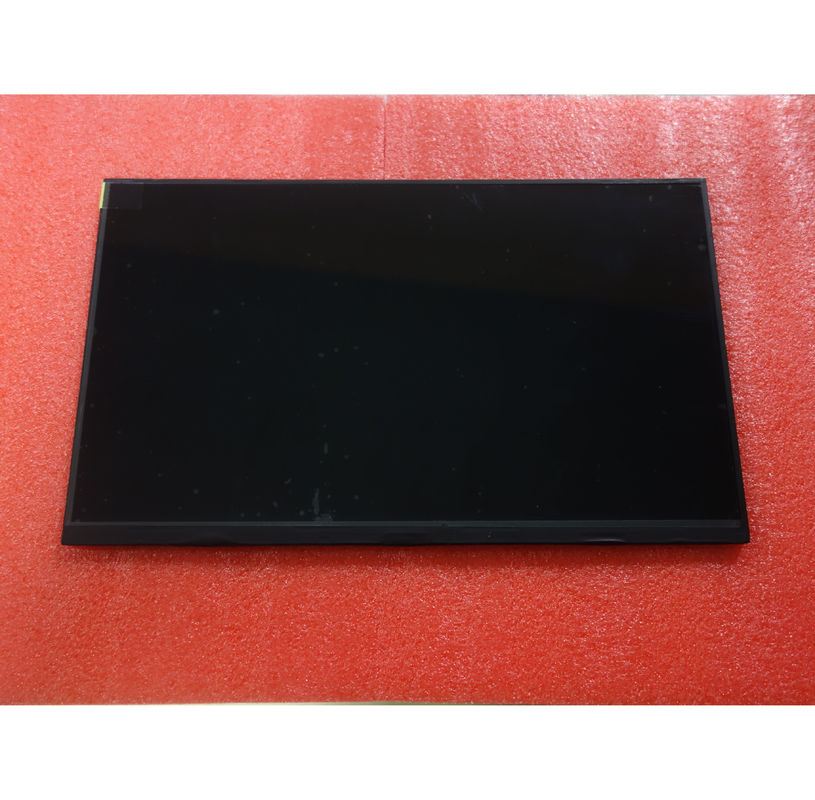

14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display

14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display
14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display

Large Image :  14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G140HAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display

Description
Operating Temp: 0 ~ 50 °C Storage Temp.: -20 ~ 60 °C
Luminance: 500 Cd/m² (Typ.) Contrast Ratio: 800 : 1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Work Mode: AHVA, Normally Black, Transmissive
High Light:

AUO Tft Lcd Display

,

G140HAN01.0 AUO Display

,

14 Inch AUO Tft Display

14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display



Description Of AUO LCD Panel

AU Optronics Corp. (hereafter called AUO) G140HAN01.0 is a 14.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver0.5 which was released out on 3 30 2017, G140HAN01.0 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G140HAN01.0 Optical Details

Basic Information :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
15/10 (Typ.)(Tr/Td) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AHVA, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
262K (6-bit)
Color Temperature
6485K
White Variation
1.33 (Max.)(5 points) 14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display 0

AUO G140HAN01.0 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1080, FHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.054×0.161 mm
Pixel Pitch(W×H)
0.161×0.161 mm [157PPI]
Physical Size :
Active Viewing
309.14(W)×173.89(H) mm
Overall Dim.
319(W)×190.76(H) mm
Bezel Opening
-
Overall Depth
4.9/8.3 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style

Fixation :
Without
Other Detail :
Mass
TBD
Surface
Glare (Haze 0%), Hard coating (3H)



Below are our other LCD panels stock for your easy reference:



H495TAN01.1 AUO 5.0"
H496TAN01.0 AUO 5.0"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 10.1"
H496TAN01.0 AUO 5.5"
H496TAN01.0 AUO 5.2"
H496TAN01.0 AUO 1.6"
H496TAN01.0 AUO 4.6"
H496TAN01.0 AUO 5.2"
H496TAN01.0 AUO 4.5"
H496TAN01.0 AUO 4.7"
H496TAN01.0 AUO 5.0"
H496TAN01.0 AUO 4.3"
H496TAN01.0 AUO 43"
H496TAN01.0 AUO 31.5"
H496TAN01.0 AUO 31.5"
H496TAN01.0 AUO 19.5"



Application Of AUO LCD Panel G140HAN01.0

1. Military Display

2. Medical Display

3. Industrial Display

4. Intelligent Display



FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.



Packaging & Delivery

Packaging Details:

Antistatic bag + Bubble bag + Foam box + Carton box

Delivery Detail:

1-3 working days after payment confirmed


14 Inch 1920×1080 G140HAN01.0 LCM AUO Tft Lcd Display 1
