G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen

G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen
G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen

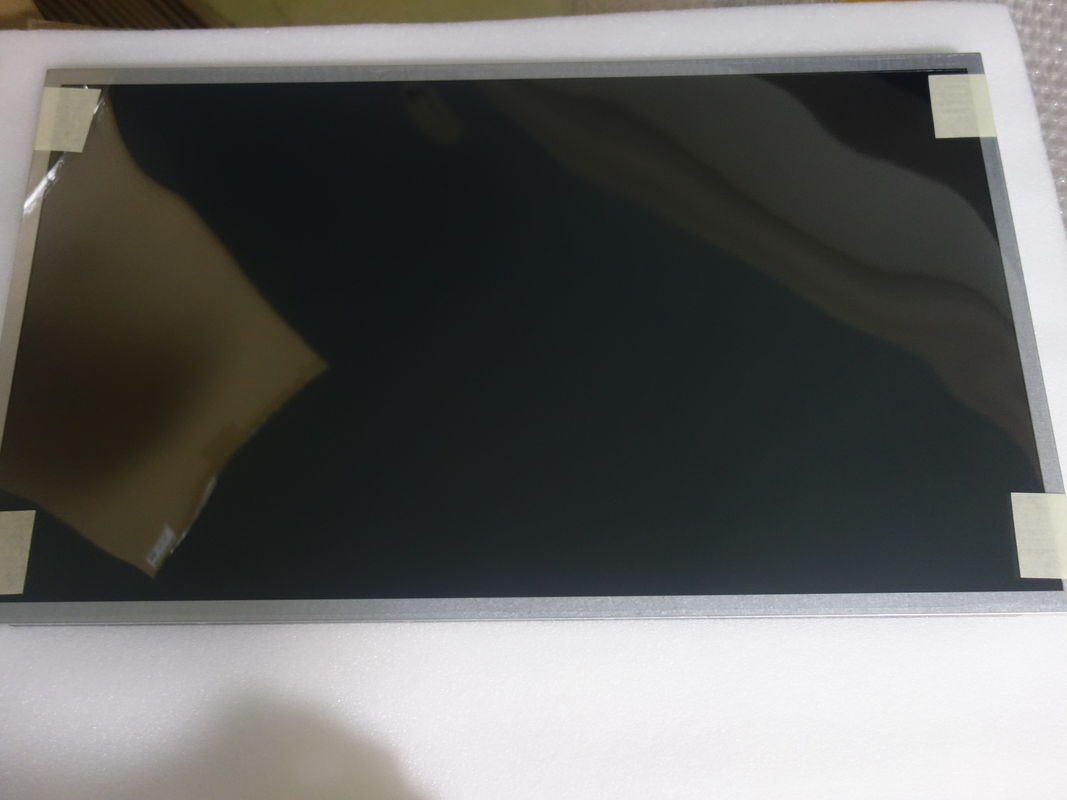

Large Image :  G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G230HAN01.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen

Description
Operating Temp.: 0 ~ 50 °C Storage Temp.: -20 ~ 60 °C
Luminance: 300 Cd/m² (Typ.) Contrast Ratio: 1000 : 1 (Typ.) (TM)
Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Work Mode: AHVA, Normally Black, Transmissive
Signal Type: LVDS (2 Ch, 8-bit) , 30 Pins Connector Backlight: 18S4P WLED , 30K Hours , No Driver
High Light:

LCM Anti Glare Lcd Screen

,

G230HAN01.1 Lcd Screen

,

AUO Anti Glare Lcd Screen

G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen



Description Of AUO LCD Panel

Now have 4 datasheets of G230HAN01.1 released by AU Optronics Corp. (hereafter called AUO). According to datasheet with version of Final Ver2.0 which was released out on 9 12 2017, G230HAN01.1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.



AUO G230HAN01.1 Optical Details

Basic Information : Luminance 300 cd/m² (Typ.) Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 8/8 (Typ.)(Tr/Td); 14 (Typ.)(G to G) (ms)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen 0 Operating Mode AHVA, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (8-bit)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 71% sRGB 97% coverage
Adobe RGB 74% coverage DCI-P3 74% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

AUO G230HAN01.1 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0884×0.2652 mm Pixel Pitch(W×H) 0.2652×0.2652 mm [95PPI]
Physical Size : Active Viewing 509.184(W)×286.416(H) mm Overall Dim. 533.2(W)×312(H) mm
Bezel Opening 513.784(W)×291.016(H) mm Overall Depth 10.5±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style
Fixation : Side mounting holes (4-M3) on left, right bezel
Other Detail : Mass 1.50±0.15Kgs Surface Antiglare



Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information



T650QVN04.5 CELL AUO 65"
M320DVN01.0 CELL AUO 32.0"
M238HVN01.0 CELL AUO 23.8"
M238HVN01.2 CELL AUO 23.8"
T320XVN02.F CELL AUO 31.5"
T430HVN01.6 CELL AUO 43"
B101EAN01.2 CELL AUO 10.1"
H497EAN01.0 AUO 5.0"
T320XVN02.C CELL AUO 31.5"
T320HVN05.8 CELL AUO 31.5"
T500HVN07.5 CELL AUO 50"
B070EAN02.0 CELL AUO 7.0"
M320QAN01.0 CELL AUO 32.0"
H546TAN02.0 AUO 5.5"
H598TAN01.0 AUO 6.0"



Application Of AUO LCD Panel G230HAN01.1

1. Intelligent Display

2. Tablet PC

3. Medical Display

4. Commercial Display





To get the latest prices, pls feel free to contact us.

1. Samples charge: According to the model. Pls contact us to get details.

2. Samples time:1 day forstock models

Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.



We can do for You:

1. Quality Guarantee:

100% original new Hard Disk for you.

2.Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3.Delivery Guarantee:

Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.

4.After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of hard disks to provide customers with effective advice.

We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.

6. Competitive quotation:

Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

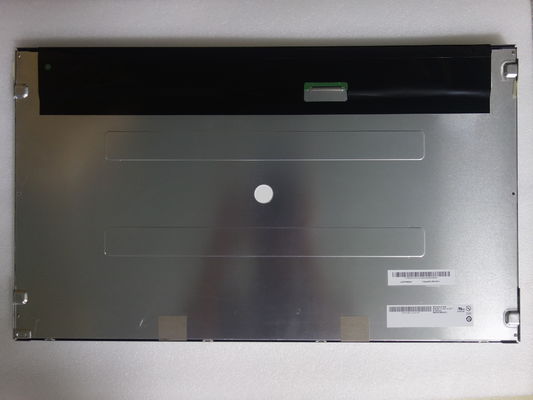

G230HAN01.1 AUO 23 Inch 1920×1080 LCM Anti Glare Lcd Screen 2
