350cd/m² 1280×1024 17" G170EG01 V1 8bit AUO LCD Panel

350cd/m² 1280×1024 17" G170EG01 V1 8bit AUO LCD Panel
350cd/m² 1280×1024 17" G170EG01 V1 8bit AUO LCD Panel

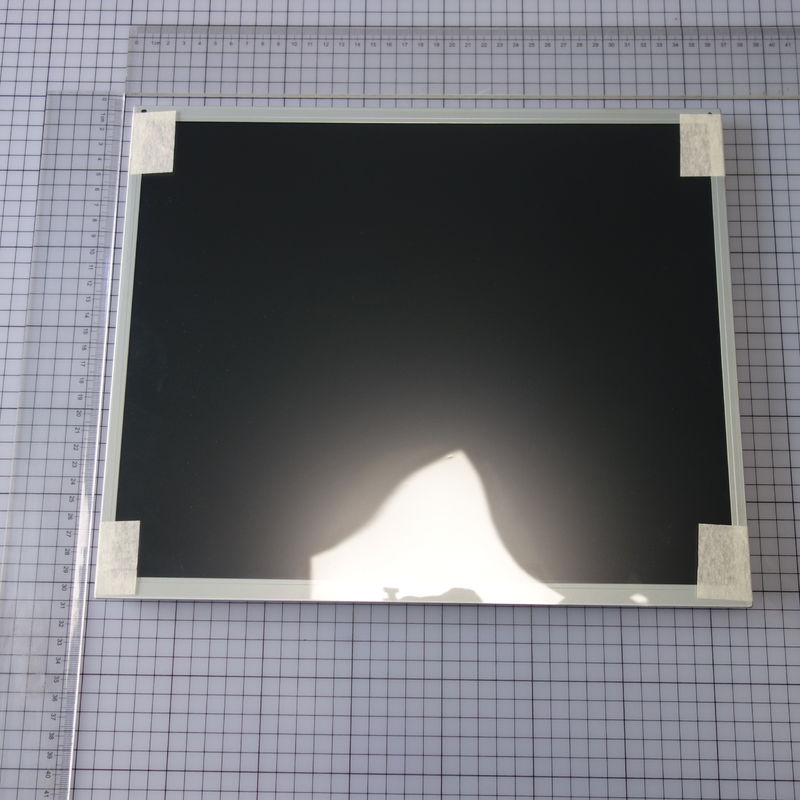

Large Image :  350cd/m² 1280×1024 17" G170EG01 V1 8bit AUO LCD Panel

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Model Number: G170EG01 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

350cd/m² 1280×1024 17" G170EG01 V1 8bit AUO LCD Panel

Description
Diagonal Size: 17 Inch Luminance: 350 Cd/m² (Typ.)
Contrast Ratio: 800:1 (Typ.) (TM) Operating Temperature: -30 ~ 85 °C
Storage Temperature: -30 ~ 85 °C Operating Mode: TN, Normally White, Transmissive
Light Source: WLED , 50K Hours , With LED Driver Interface Type: LVDS (2 Ch, 8-bit) , 30 Pins Connector
High Light:

8bit AUO LCD Panel

,

17" AUO LCD Panel

,

350cd/m² AUO LCD Panel

350cd/m² 1280×1024 17" G170EG01 V1 8bit AUO LCD Panel



Description Of AUO LCD Panel

G170EG01 V1 (Alias: G170EG01 V.1) is a 17.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.5 which was released out on 1 15 2014, G170EG01 V1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.





AUO G170EG01 V1 Mechanical Details

Pixel Features : Resolution 1280(RGB)×1024, SXGA Dot Pitch(mm) 0.088×0.264 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.264×0.264 (H×V) [96PPI]
Mechanical Size : Active Area(mm) 337.92(H) × 270.336(V) Bezel Area(mm) 341.6(H) × 274.0(V)
Outline Dim.(mm) 358.5(H) × 296.5(V) Depth(mm) 18.0 (Max.)
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 5:4 (H:V) Orientation Landscape type
Mounting : Side mounting holes (4-M3) on left, right bezel
Other Spec : Weight 1.35Kgs (Typ.) Treatment Antiglare, Hard coating (3H)

AUO G170EG01 V1 Optical Details

Basic Information : Luminance(cd/m²) 350 (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive)
Viewing Angle 80/80/60/80 (Typ.)(CR≥10) 350cd/m² 1280×1024 17" G170EG01 V1 8bit AUO LCD Panel 0 Display Mode TN, Normally White, Transmissive
Best View on 6 o'clock Response(ms) 20/10 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 16.7M (6-bit + Hi-FRC)
Color Temperature 6485K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 71% sRGB 93% coverage
Adobe RGB 73% coverage DCI-P3 74% coverage
Rec.2020 53% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Below are our other LCD panels stock for your easy reference:



H520DAN01.1 AUO 5.2"
B116XAN05.0 CELL AUO 11.6"
H495TAN01.0 AUO 5.0"
H598QAN02.1 AUO 6.0"
M185XTN01.2 CELL AUO 18.5"
H598QAN01.0 AUO 6.0"
T430HVN01.2 CELL AUO 43"
H495TAN01.2 AUO 5.0"
T650QVN04.5 CELL AUO 65"
M320DVN01.0 CELL AUO 32.0"
M238HVN01.0 CELL AUO 23.8"
M238HVN01.2 CELL AUO 23.8"
T320XVN02.F CELL AUO 31.5"



Application Of AUO LCD Panel G170EG01 V1

1. Medical Display

2. Handheld & PDA

3. Commercial Display

4. Intelligent Display
