Product Details:
|
| Operating Temperature: | 0 ~ 50 °C | Storage Temperature: | -20 ~ 60 °C |
|---|---|---|---|
| Luminance: | 280 Cd/m² (Typ.) | Contrast Ratio: | 350:1 (Typ.) (TM) |
| Viewing Angle: | 70/70/50/60 (Typ.)(CR≥10) | Operating Mode: | TN, Normally White, Transmissive |
| High Light: | LCM Sharp LCD Panel,LQ106K1LA05,10.6 Inch LCM Sharp Panel |
||

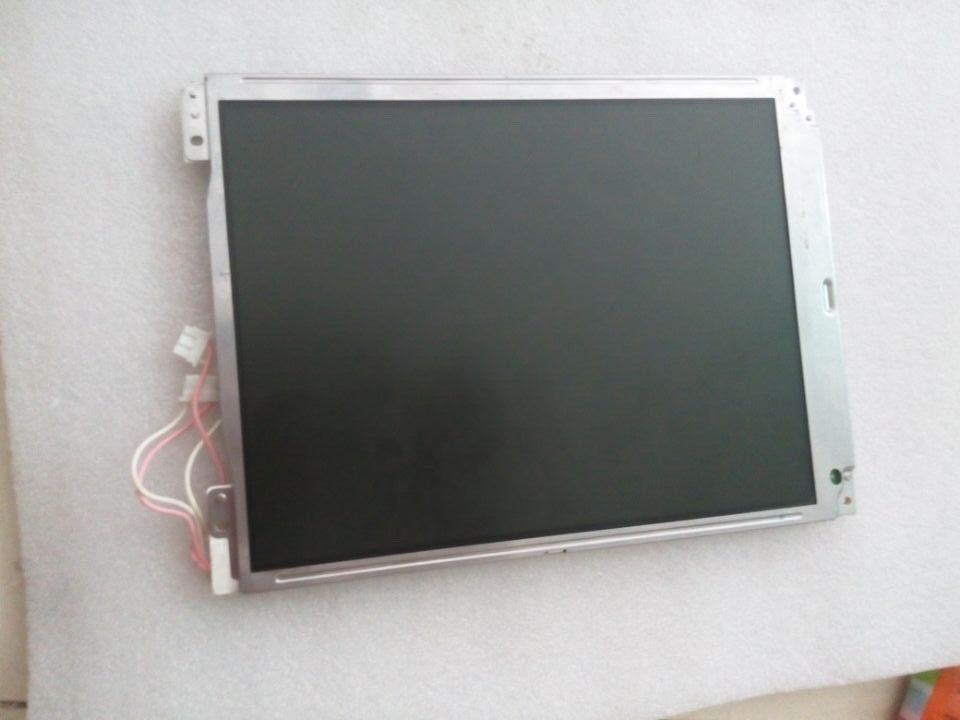

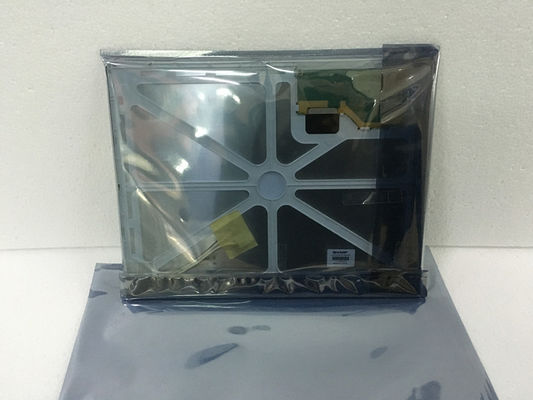

1280×768 10.6 Inch LQ106K1LA05 LCM Sharp LCD Panel
Description of Sharp LCD Panel
Sharp Corporation (hereafter called Sharp) LQ106K1LA05 is a 10.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Based on datasheet with version of LD-19726B which was released out on 7 31 2007, LQ106K1LA05 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| LQ055T3SX04 | SHARP | 5.5" |
| LQ079L1SX06 | SHARP | 7.9" |
| LQ079L1SX04 | SHARP | 7.9" |
| LQ133M1JW08 | SHARP | 13.3" |
| LQ156D1JX02 | SHARP | 15.6" |
| LQ156Z1JW01 | SHARP | 15.6" |
| LQ156D1JX02 | SHARP | 15.6" |
| LQ156Z1JW01 | SHARP | 15.6" |
| LQ133T1JW14B | SHARP | 13.3" |
| LQ047K3SX04 | SHARP | 4.7" |
Application Of Sharp LCD Panel LQ106K1LA05
1. Intelligent Display
2. Military Display
3. Tablet PC
4. Self-service Terminals Display
Quality Control:
1.Visual Inspection:
Make sure No damage, No Scratches, No dusty, No light leakage.
2.Function Inspection:
Make sure all functions are 100% tested ok
