800×600 12.1" Sharp LQ121S1LG86 Industrial LCD Panel

800×600 12.1" Sharp LQ121S1LG86 Industrial LCD Panel
800×600 12.1" Sharp LQ121S1LG86 Industrial LCD Panel

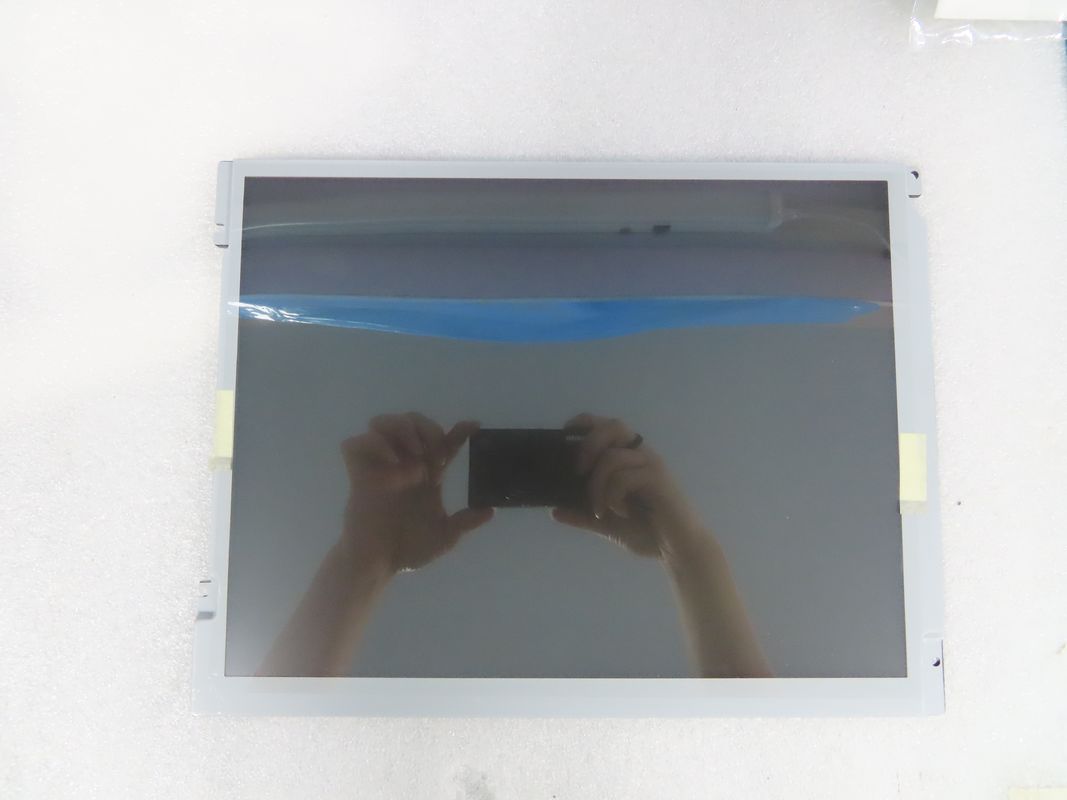

Large Image :  800×600 12.1" Sharp LQ121S1LG86 Industrial LCD Panel

Product Details:
Place of Origin: Korea
Brand Name: Sharp
Model Number: LQ121S1LG86
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

800×600 12.1" Sharp LQ121S1LG86 Industrial LCD Panel

Description
Operating Temp.: -30 ~ 70 °C Storage Temp.: -30 ~ 70 °C
Viewing Angle: 80/80/80/60 (Typ.)(CR≥10) Contrast Ratio: 800 : 1 (Typ.) (TM)
Work Mode: TN, Normally White, Transmissive Signal Type: LVDS (1 Ch, 6-bit) , Connector 20 Pins
Backlight: WLED , 50K Hours , With LED Driver Touchscreen: Without
High Light:

LQ121S1LG86 Industrial LCD Panel

,

LQ121S1LG86

,

LQ121S1LG86 Sharp Panel

800×600 12.1" Sharp LQ121S1LG86 Industrial LCD Panel



Description of Sharp LCD Panel

Now have 1 datasheets of LQ121S1LG86 released by Sharp Corporation (hereafter called Sharp). According to datasheet with version of LD-25101A which was released out on 1 17 2013, LQ121S1LG86 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.



Sharp LQ121S1LG86 Optical Details

Basic Information :
Luminance
1500 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
30 (Typ.)(Tr+Td) ms
Viewing Angle
80/80/80/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.305; Wy:0.315
Support Color
262K (6-bit)
Color Temperature
7106K
White Variation
1.33 (Max.)(5 points) 800×600 12.1" Sharp LQ121S1LG86 Industrial LCD Panel 0
1931 Color Gamlt :
NTSC Ratio
49%
sRGB
67% coverage
Adobe RGB
51% coverage
DCI-P3
51% coverage
Rec.2020
37% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmissivity
-

Sharp LQ121S1LG86 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×600, SVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1025×0.3075 mm
Pixel Pitch(W×H)
0.3075×0.3075 mm [82PPI]
Physical Size :
Active Viewing
246(W)×184.5(H) mm
Overall Dim.
276(W)×209(H) mm
Bezel Opening
249.0(W)×187.5(H) mm
Overall Depth
9.6 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
4:3
Shape Style

Fixation :
Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel
Other Detail :
Mass
600g (Max.)
Surface
Antiglare, Hard coating (3H)



We also have other industrial LCD panels, pls contact to us for the further information



LK315T3HB873 SHARP 31.5"
LQ0DZC0156 SHARP 40"
LX080M1BB01 SHARP 8.0"
LS050K3SX09 SHARP 5.0"
LQ315D1EG02 SHARP 31.5"
LQ079L1SX06 SHARP 7.9"
LQ079L1SX04 SHARP 7.9"
LQ133M1JW08 SHARP 13.3"
LQ156D1JX02 SHARP 15.6"
LQ156Z1JW01 SHARP 15.6"



Application Of Sharp LCD Panel LQ121S1LG86

1. Tablet PC

2. Self-service Terminals Display

3. Industrial Display

4. Automotive Display





Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.
