Product Details:
|
Panel Model: | G070VVN01.2 | Panel Brand: | AUO |
---|---|---|---|
Pixel Format: | RGB Vertical Stripe | Panel Size: | 7.0" |
Input Voltage: | 3.3V (Typ.) | Signal Interface: | Parallel RGB (1 Ch, 6/8-bit) , 50 Pins Connector |
Resolution: | 800(RGB)×480, WVGA, 133PPI | Surface: | Antiglare, Hard Coating (3H) |
High Light: | Parallel RGB AUO LCD Panel,6601K AUO LCD Panel,G070VVN01.2 |

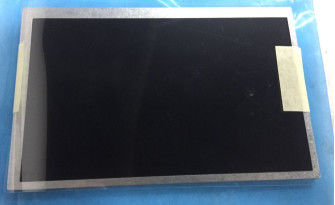

Description Of AUO LCD Panel
G070VVN01.2 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 164.55(W)×104.71(H)×8.5(D) mm, viewing area size of 154.2(W)×93.2(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 143g (Typ.). G070VVN01.2 can provides 600 cd/m² display brightness 1500:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 10/25 (Typ.)(Tr/Td) ms.
Feature Of AUO LCD Panel
1) Model:G070VVN01.2
2) Storage Temp.:-30 ~ 80 °C
3) Operating Temp.:-20 ~ 70 °C
4) Screen Size:7.0 inch
5) Resolution:800(RGB)×480, WVGA
6) Active Area(mm):152.4(H) × 91.44(V)
7) Bezel Area(mm):154.2(H) × 93.2(V)
8) Color Temperature:6601K
9) Luminance(cd/m²):600 (Typ.)
Basic Information : | |
---|---|
Color Performance : | |
1931 Color Gamlt : |
Signal Electrical : | |
---|---|
Signal Type : | |
Interface Features : | |
Interface Detail : |
|
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
H546DAN01.0 | AUO | 19.5" |
H347QTN01.0 | AUO | 3.5" |
H515DAN01.0 | AUO | 5.2" |
H499TAN03.1 | AUO | 5.0" |
G150XG03 V3 CELL | AUO | 15.0" |
B080XAN03.1 CELL | AUO | 7.9" |
H572DAN01.2 | AUO | 5.7" |
H598AAN01.0 | AUO | 6.0" |
H497DAN01.1 | AUO | 5.0" |
H650DAN01.0 | AUO | 6.4" |
H572DAN01.0 | AUO | 5.7" |
H546DAN01.2 | AUO | 5.5" |
H499TAN03.0 | AUO | 5.0" |
H572TAN01.0 | AUO | 5.7" |
H466TAN02.3 | AUO | 4.7" |
H446TAN03.1 | AUO | 4.5" |
H446TAN03.0 | AUO | 4.5" |
Application Of AUO LCD Panel G070VVN01.2
1. Self-service terminal display
2. Medical display
3. Industrial display
4. Automotive display
5. Tablet PC
6. Handheld & PDA
