Product Details:
|
| Brand: | AUO | Model: | G190EG01 V1 |
|---|---|---|---|
| Diagonal Size: | 19.0 Inch | Type: | A-Si TFT-LCD, LCM |
| Pixel Format: | 1280(RGB)×1024 [SXGA] 86PPI | Configuration: | RGB Vertical Stripe |
| Active Area: | 376.32(H)×301.056(V) Mm | Outline Dim.: | 396(H)×324(V) ×18.3(D) Mm |
| High Light: | 19" LCM AUO LCD Panel,G190EG01 V1,WLED Backlight AUO LCD Panel |
||

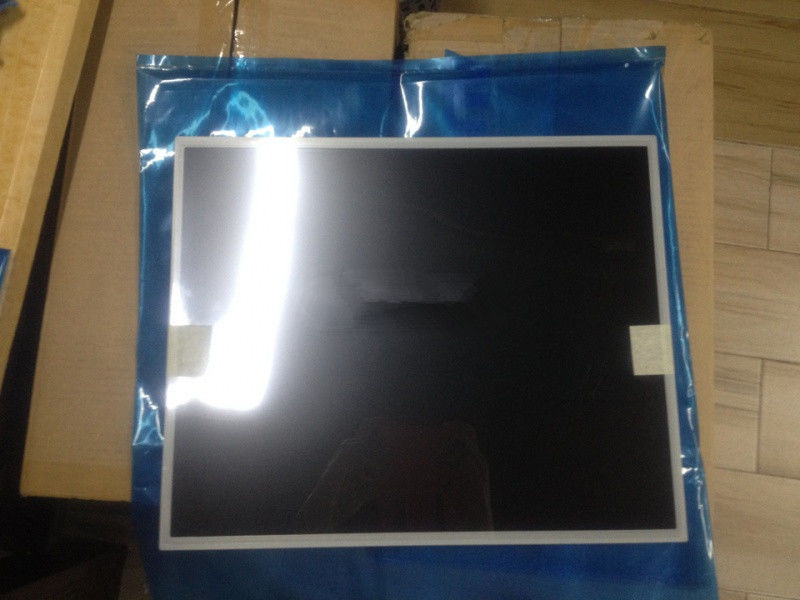

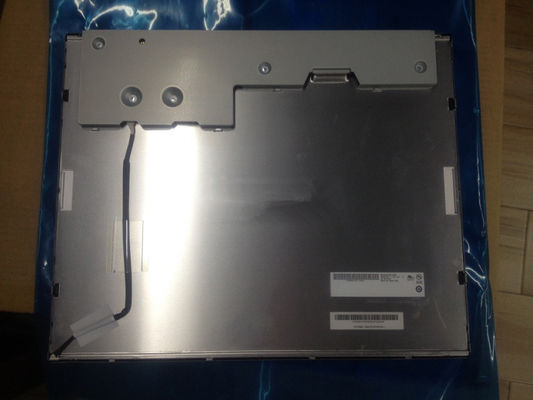

WLED Backlight Industrial G190EG01 V1 19" LCM AUO LCD Panel
Description Of AUO LCD Panel
G190EG01 V1 (Alias: G190EG01 V.1) is a 19.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.3 which was released out on 7 1 2013, G190EG01 V1 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.5(V)±0.46Kgs
AUO G190EG01 V1 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 85/85/80/80 (Typ.)(CR≥10) | 3.6/1.4 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 72% | 94% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 75% | 54% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Panel Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×1024 [SXGA] | RGB Vertical Stripe | 0.294×0.294 [86PPI] | 0.098×0.294 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 376.32(H) × 301.056(V) | 380.32(H) × 305.06(V) | 396(H) × 324(V) | 18.3 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 5:4 (H:V) | - | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 1.67Kgs (Typ.) | - | Antiglare, Hard coating (3H) | ||
