Product Details:
|
| Panel Brand: | AUO | Panel Model: | G150XG01 V3 |
|---|---|---|---|
| Panel Size: | 15.0" | Panel Type: | A-Si TFT-LCD, LCM |
| Resolution: | 1024(2)×768(2), XGA, 85PPI | Pixel Format: | RGBW Rectangle |
| High Light: | G150XG01 V3 AUO LCD Panel,G150XG01 V3,RGBW Rectangle AUO LCD Display |
||

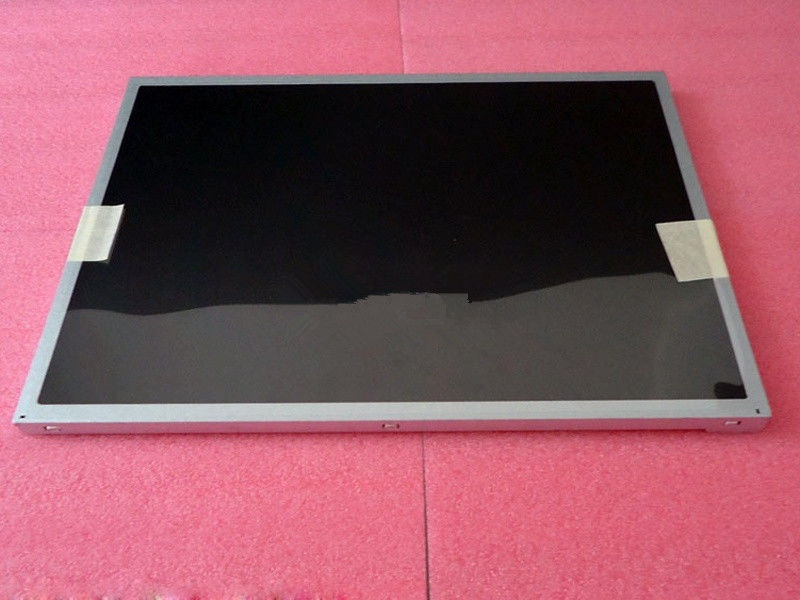

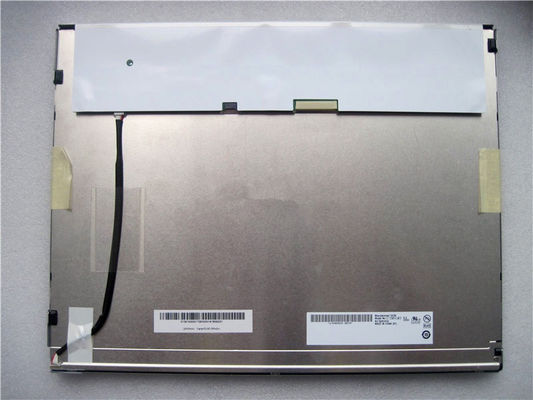

1024×768 RGBW Rectangle G150XG01 V3 AUO LCD Panel
Description Of AUO LCD Panel
G150XG01 V3 (Alias: G150XG01 V.3) is a 15.0 inch diagonal a-Si TFT-LCD display screen product from AUO, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Final Ver1.0 which was released out on 11 16 2010, G150XG01 V3 supports display 1024(2)×768(2) (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGBW Rectangle.
AUO G150XG01 V3 Mechanical Details
| Pixel Features : |
Pixel Format
1024(2)×768(2), XGA
Dot Pitch
0.1485×0.1485 mm (H×V)
Configuration
RGBW Rectangle
Pixel Pitch
0.297×0.297 mm (H×V) [85PPI]
|
|---|---|
| Mechanical Size : |
Display Area
304.128×228.096 mm (H×V)
Bezel Area
310.18×234.40 mm (H×V)
Outline Dim.
326.5×253.5 mm (H×V)
Outline Depth
13.1 (Max.) mm
|
| Outline Features : |
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style
-
|
| Holes & Brackets : |
Side mounting holes (4-M3) on left, right bezel
|
| Other Features : |
Weight
1.00Kgs (Max.)
Surface
Antiglare, Hard coating (3H)
|
AUO G150XG01 V3 Optical Details
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H381DLN01.0 | AUO | 3.8" |
| H497TLB01.4 | AUO | 5.0" |
| H163QLN01.0 | AUO | 1.63" |
| H139BLN01.2 | AUO | 1.39" |
| H500TLB01.0 | AUO | 5.0" |
| X546DLB01.0 | AUO | 5.5" |
| H546DLB01.1 | AUO | 5.5" |
| H429ALN01 V0 | AUO | 4.3" |
| H139BLN01.1 | AUO | 1.39" |
| H163QLN01.1 | AUO | 1.63" |
| H497TLB01 | AUO | 5.0" |
| H497TLB01.0 | AUO | 5.0" |
| M350DVR01.1 CELL | AUO | 35.0" |
| T320HVN02.1 CELL | AUO | 31.5" |
| M270DAN01.1 CELL | AUO | 27.0" |
| T500QVN03.3 CELL | AUO | 50" |
| T500QVN03.0 CELL | AUO | 50" |
Application Of AUO LCD Panel G150XG01 V3 Automotive display
2. Commercial display
3. Handheld&PDA
4. Industrial display
5. Tablet PC
6. Medical display
7. Self-service terminals display
8. Military display
9.Interlligent display
Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams
