Product Details:
|
| Panel Model: | G156HAN02.0 (AUO30ED) | Panel Brand: | AUO |
|---|---|---|---|
| Panel Size: | 15.6" | Panel Type: | A-Si TFT-LCD , LCM |
| Display Colors: | 16.2M 98% SRGB | Brightness: | 500 Cd/m² (Typ.) |
| Panel Weight: | 600/660g (Typ./Max.) | Response Time: | 25 (Typ.)(Tr+Td) |
| Signal Interface: | EDP (2 Lanes) , 30 Pins Connector | Lamp Type: | WLED , 50K Hours , With LED Driver |
| High Light: | 15.6" LCM AUO LCD Panel,G156HAN02.0,G156HAN02.0 LCD Panel |
||

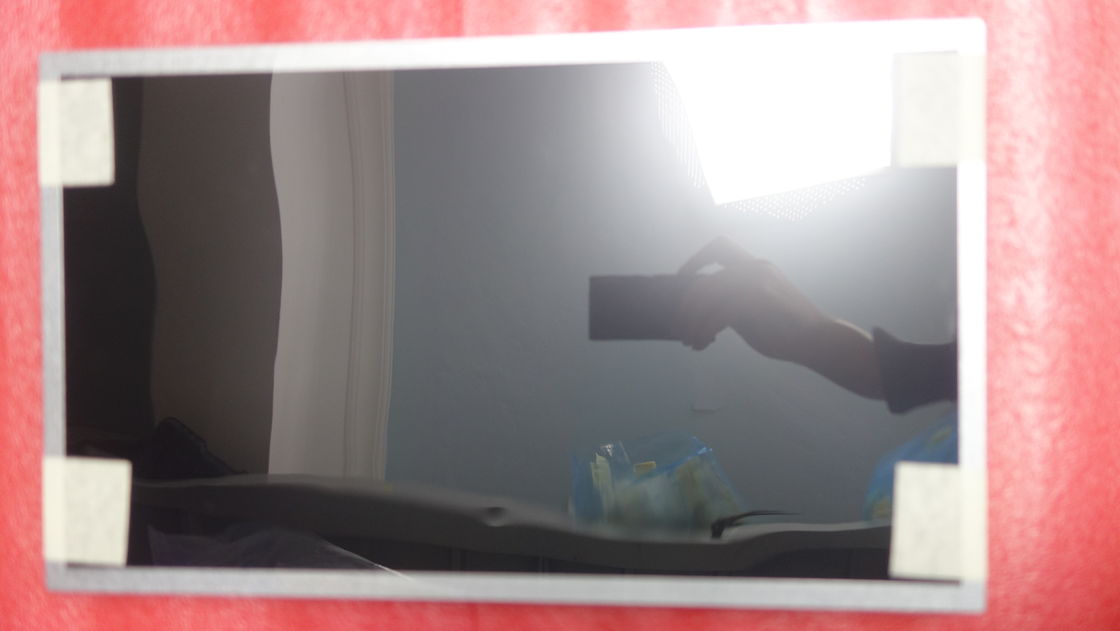

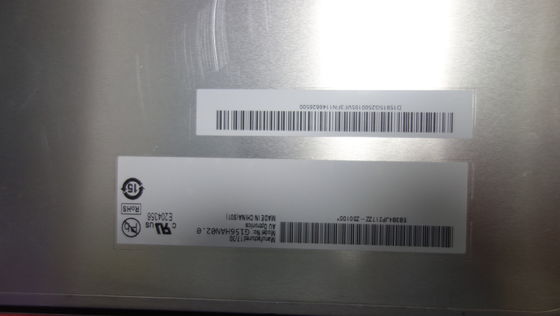

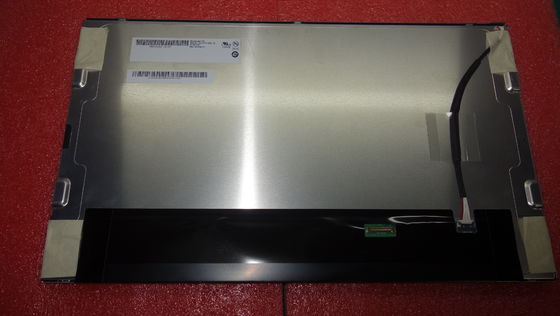

Sunlight Readable G156HAN02.0 15.6" LCM AUO LCD Panel
Description Of AUO LCD Panel
G156HAN02.0 (Product Code: AUO30ED) is a 15.6 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G156HAN02.0 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| M350DVR01.1 CELL | AUO | 35.0" |
| T320HVN02.1 CELL | AUO | 31.5" |
| M270DAN01.1 CELL | AUO | 27.0" |
| T500QVN03.3 CELL | AUO | 50" |
| T500QVN03.0 CELL | AUO | 50" |
| H546DAN07.3 | AUO | 5.5" |
| M270HVN02.3 CELL | AUO | 27.0" |
| M270HVN02.2 CELL | AUO | 27.0" |
| M270HVN02.1 CELL | AUO | 27.0" |
| M270DTN01.0 CELL | AUO | 27.0" |
| T320HVN05.7 CELL | AUO | 31.5" |
| T320HVN05.4 CELL | AUO | 31.5" |
| T215HVN01.2 CELL | AUO | 21.5" |
| B070ATN02.0 CELL | AUO | 7.0" |
| M238DAN01.3 CELL | AUO | 23.8" |
| B070AAN01.0 | AUO | 7.0" |
AUO G156HAN02.0 Mechanical Details
| Pixel Features : |
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
|
|---|---|
| Mechanical Size : |
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
347.06(H) × 196.49(V)
Outline Dim.(mm)
363.8(H) × 215.9(V)
Depth(mm)
8.8±0.5
|
| Outline Features : |
Form Style
Flat Rectangle
Shape Style
-
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
|
| Mounting : |
Side mounting holes (4-M3) on left, right bezel
|
| Other Spec : |
Weight
600/660g (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)
|
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
Application Of AUO LCD Panel G156HAN02.0
1. KIOSK
2. POS
3. ATM
4. INDUSTRIAL
5. MEDICAL
6. TRANSPORT
