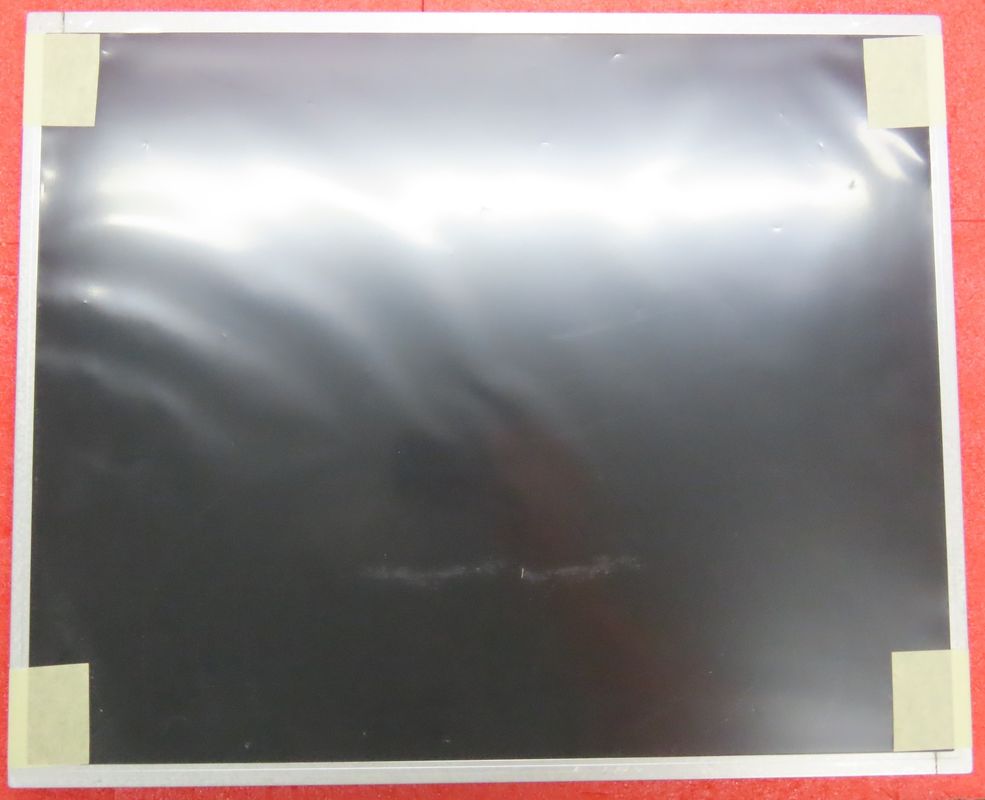

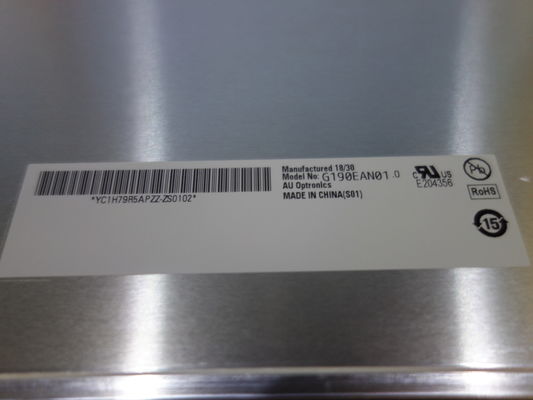

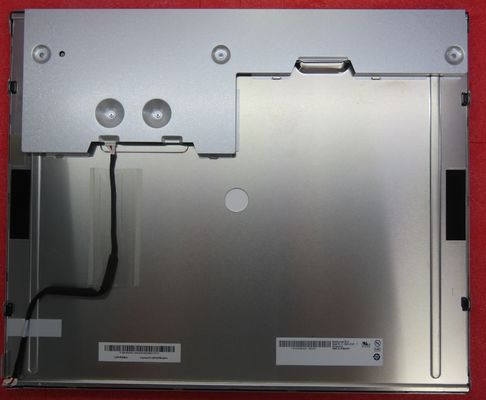

30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel

30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel
30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel 30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel 30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel

Large Image :  30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel

Product Details:
Place of Origin: taiwan
Brand Name: AUO
Model Number: G190EAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,PAPLY,BANK TRANSFER
Supply Ability: 1000

30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel

Description
Panel Model: G190EAN01.0 Panel Brand: AUO
Panel Size: 19.0" Panel Type: A-Si TFT-LCD, LCM
Brightness: 300 Cd/m² (Typ.) Display Colors: 16.7M 72% NTSC
Signal Interface: LVDS (2 Ch, 8-bit) , 30 Pins Connector Lamp Type: 9S6P WLED , 50K Hours , With LED Driver
Input Voltage: 5.0V (Typ.) Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
High Light:

6485K AUO LCD Panel

,

G190EAN01.0

,

G190EAN01.0 display panel

30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel



Description Of AUO LCD Panel G190EAN01.0

G190EAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of G190EAN01.0 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO or it's distributor.





Feature Of AUO LCD Panel

Model G190EAN01.0
Screen Size 19.0 inch
Type a-Si TFT-LCD , LCM
Storage Temp. -20 ~ 60 °C
Operating Temp. 0 ~ 50 °C
Pixel Format RGB Vertical Stripe
Bezel Area(mm) 380.32(H) × 305.06(V)
Weight 1.55Kgs (Typ.)
Color Temperature 6485K
Display Mode AHVA, Normally Black, Transmissive





Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information

X139BLB01.0 AUO 1.39"
H381DLN01.0 AUO 3.8"
H497TLB01.4 AUO 5.0"
H163QLN01.0 AUO 1.63"
H139BLN01.2 AUO 1.39"
H500TLB01.0 AUO 5.0"
X546DLB01.0 AUO 5.5"
H546DLB01.1 AUO 5.5"
H429ALN01 V0 AUO 4.3"
H139BLN01.1 AUO 1.39"
H163QLN01.1 AUO 1.63"
H497TLB01 AUO 5.0"
H497TLB01.0 AUO 5.0"





AUO G190EAN01.0 Optical Details

Basic Information :
Luminance(cd/m²)
300 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
AHVA, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
13/12 (Typ.)(Tr/Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.33 (Typ./Max.)(9 points) 30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel 0
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
96% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





AUO G190EAN01.0 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
0.7/0.9A (Typ./Max.)
Consumption
3.5/4.5W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position
Upper right of panel
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration 30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel 2
JAE
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-190A





Application Of AUO LCD Panel G190EAN01.0

1. electronic watch

2. military products

3. medical instrument

4. advertising machine

5. communication equipment





Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams







FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.



30 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel 330 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel 430 Pins Connector G190EAN01.0 19 Inch 6485K AUO LCD Panel 5
