800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel

800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel
800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel 800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel

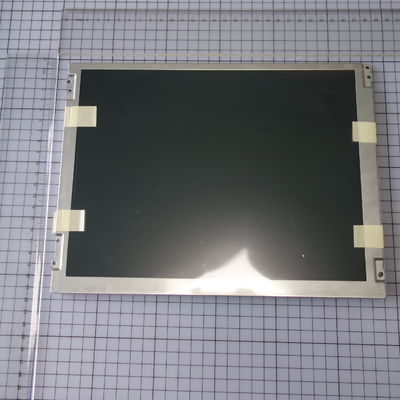

Large Image :  800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel

Product Details:
Place of Origin: taiwan
Brand Name: AUO
Model Number: G121SN01 V4
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: Standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T ,Western Union,PAYPAL,BANK TRANSFER
Supply Ability: 1000

800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel

Description
Panel Brand: AUO BrandAUOPanel Model: G121SN01 V4
Panel Size: 12.1" Panel Type: A-Si TFT-LCD, LCM
Resolution: 800(RGB)×600, SVGA, 82PPI Pixel Format: RGB Vertical Stripe
High Light:

G121SN01 V4 AUO LCD Panel

,

G121SN01 V4

,

1.25 Mm AUO LCD Panel

800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel



Description Of AUO LCD Panel

G121SN01 V4 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 279(W)×209(H) mm, viewing area size of 249.05(W)×188.3(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 580g (Max.).

AUO G121SN01 V4 Specification Details

Basic Detail :
Manufacturer
800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel 0
Model Name
G121SN01 V4
Panel Type
a-Si TFT-LCD , LCM
Another Name
G121SN01 V.4, 97.12G01.401
Panel Size
12.1 inch
Designed For
  • 800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel 1
Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-30 ~ 85 °C
RoHS
800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel 2
Vibration Level
1.5G (14.7 m/s²)
Features :
  • Wide Temperature
  • Lamp Repaceable
  • WLED Backlight
  • Life ≥ 50K hours
  • With LED Driver
  • Upside I/F
  • 180° Reverse
  • 6/8 bit
  • Matte
Remarks :
Mass production from May 2009; 6.7W





AUO G121SN01 V4 Interface Details

Signal Electrical :
Input Current
280mA (Typ.)
Input Voltage
3.3V (Typ.)
Consumption
0.924W (Typ.)
Signal Interface
LVDS (1 ch, 6/8-bit)
Interface Features :
Position
Upper right of panel
Physical Type
Connector
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Pin Assignment
STM
MSB240420E
1.25 mm
20 pins
1 pcs
LVDS-20P1C8B-080B



Application of AUO  G121SN01 V4
1) Electronic Watch
2) Military Products
3) Communication  Equipment
4) Military Products


We Can Do for You:

1) One-to-one service with efficient& professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.



FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.


800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel 13800×600 1.25 Mm 12.1 Inch G121SN01 V4 AUO LCD Panel 14
