Product Details:
|
| Panel Brand: | AUO | Panel Model: | G190EG02 V0 |
|---|---|---|---|
| Panel Size: | 19.0" | Panel Type: | A-Si TFT-LCD , LCM |
| Brightness: | 600 Cd/m² (Typ.) | Display Colors: | 16.7M 70% NTSC |
| Panel Weight: | 2.00/2.10Kgs (Typ./Max.) | Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Pixel Format: | RGB Vertical Stripe | Lamp Type: | WLED , 50K Hours , With LED Driver |
| High Light: | G190EG02 V0 LCD Display Panel,G190EG02 V0,19 Inch LCM LCD Panel |
||

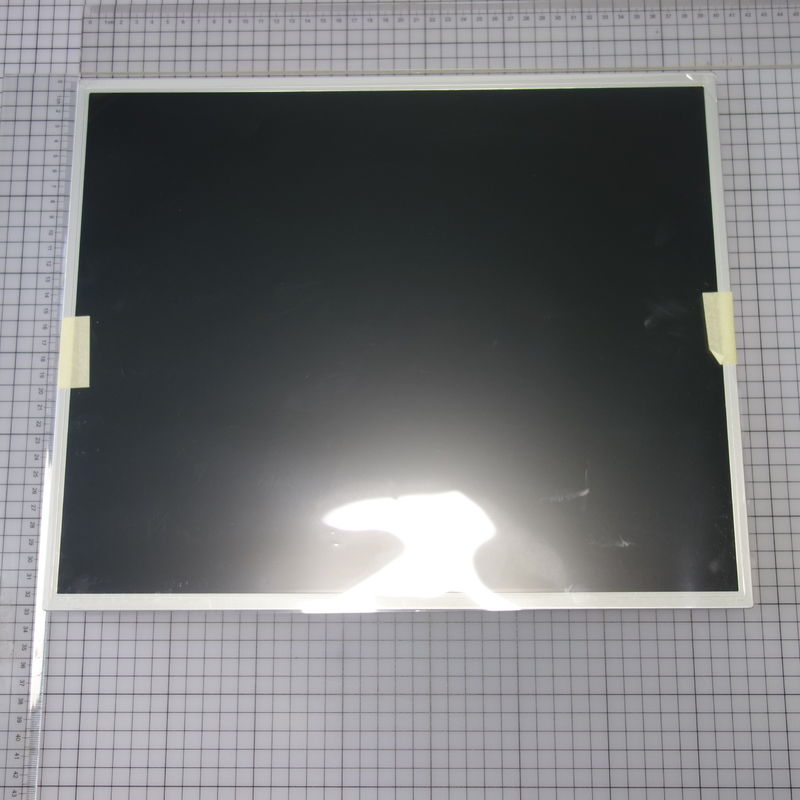

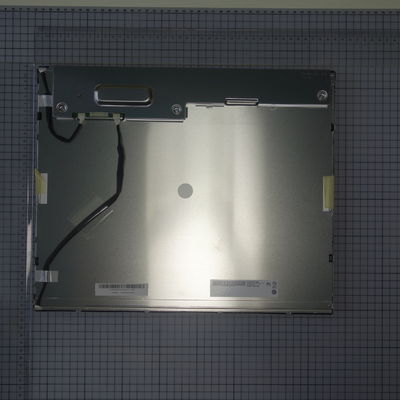

19 Inch LCM 1280×1024 G190EG02 V0 LCD Display Panel
Description Of AUO LCD Panel
G190EG02 V0 (Alias: G190EG02 V.0) is a 19.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. Based on datasheet with version of Ver1.3 which was released out on 9 18 2014, G190EG02 V0 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H572DAN01.0 | AUO | 5.7" |
| H546DAN01.2 | AUO | 5.5" |
| H499TAN03.0 | AUO | 5.0" |
| H572TAN01.0 | AUO | 5.7" |
| H466TAN02.3 | AUO | 4.7" |
| H446TAN03.1 | AUO | 4.5" |
| H446TAN03.0 | AUO | 4.5" |
| H546AAN01.0 | AUO | 5.5" |
| B070ATN01.0 CELL | AUO | 7.0" |
| A070SN02 V0 CELL | AUO | 7.0" |
| A050VVN01.2 | AUO | 5.0" |
| Screen Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 376.32×301.056 mm | 380.32×305.06 mm | 396×324 mm | 14.3/21.85 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 5:4 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.00/2.10Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | MVA, Normally Black, Transmissive | 2000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) |
15/5 (Typ.)(Tr/Td); 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) |
||
Application Of AUO LCD Panel G190EG02 V0
1. industrial PC
2. notebook
3. automotive
4. medical imaging
Advantage Of AUO LCD Panel
1. We are professional LCD module manufacture in China with precise and advanced equipments.
2. High quality Control with CE,ROHS and so on approved.
3. More than 10 years of industry experience and involved main markets all over the world
4. Dedicated and professional sales team will offer you 24 hours online and immediate service
5. OEM and ODM support,12 months warranty for all of our products
6. Our mission is to help our customers achieve success, then fulfill our both dreams
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
