Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel

Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel
Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel

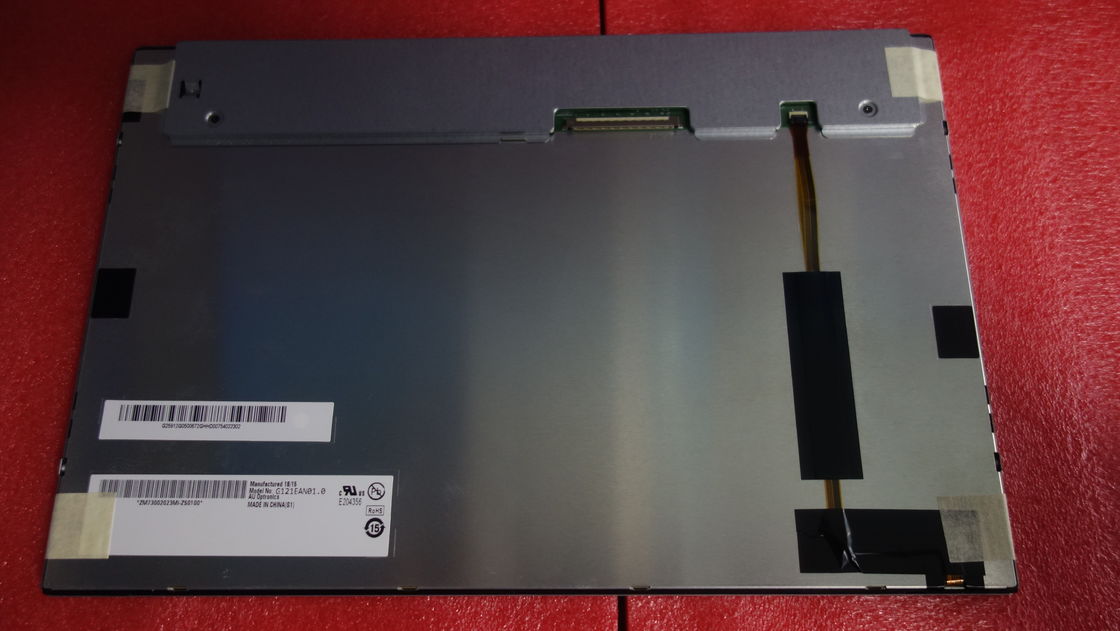

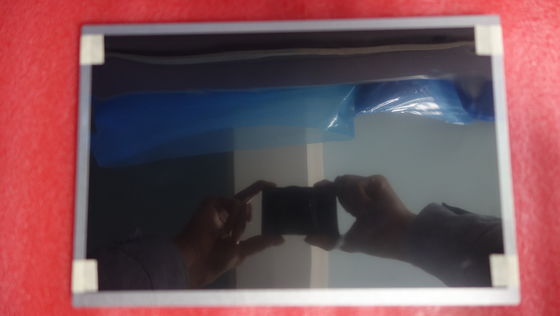

Large Image :  Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel

Product Details:
Place of Origin: taiwan
Brand Name: AUO
Model Number: G121EAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: pls contact us
Packaging Details: Standard Packaging
Delivery Time: 5-8 work days
Payment Terms: T/T ,Western Union,PAYPAL,BANK TRANSFER
Supply Ability: 1000

Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel

Description
Panel Brand: AUO Panel Model: G121EAN01.0
G121EAN01.0 Panel Size: 12.1" Panel Type: A-Si TFT-LCD, LCM
Surface: Antiglare, Hard Coating (3H) Touch Screen: Without
Signal Interface: LVDS (1 Ch, 6/8-bit) , 30 Pins Connector Brightness: 500 Cd/m² (Typ.)
High Light:

12.1" AUO LCD Panel

,

G121EAN01.0

,

G121EAN01.0 LCD Panel

Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel



Quick Details

BrandAUO
ModelG121EAN01.0
Diagonal Size12.1 inch
Typea-Si TFT-LCD, LCM
Pixel Format1280(RGB)×800 [WXGA] 124PPI
Configuration RGB Vertical Stripe
Active Area261.12(H)×163.2(V) mm
Outline Dim. 278(H)×184(V) ×9.29(D) mm
Bezel Area-TreatmentAntiglare, Hard coating (3H)
Luminance500 cd/m2 (Typ.)
Contrast Ratio 1000:1 (Typ.) (TM)


Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information

H497DAN01.1 AUO 5.0"
H650DAN01.0 AUO 6.4"
H572DAN01.0 AUO 5.7"
H546DAN01.2 AUO 5.5"
H499TAN03.0 AUO 5.0"
H572TAN01.0 AUO 5.7"
H466TAN02.3 AUO 4.7"
H446TAN03.1 AUO 4.5"
H446TAN03.0 AUO 4.5"
H546AAN01.0 AUO 5.5"
B070ATN01.0 CELL AUO 7.0"
A070SN02 V0 CELL AUO 7.0"
A050VVN01.2 AUO 5.0"
M320QAN01.1 CELL AUO 32.0"
M270HVN02.0 CELL AUO 27.0"
M270HTN01.1 CELL AUO 27.0"
B116XAN03.0 CELL AUO 11.6"
M215HTN01.3 CELL AUO 21.5"
M190PW01 V8 CELL AUO 19.0"



AUO G121EAN01.0 Specification  Features

Basic Information : Brand Name Model Name Type Model Alias
Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel 0 G121EAN01.0 a-Si TFT-LCD , LCM -
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel 1 -30 ~ 85 °C -30 ~ 85 °C -
Application :
  • Hard Coating G121EAN01.0 1280×800 12.1" AUO LCD Panel 2
Typical Features :
  • sRGB
  • Wide Temperature
  • WLED Backlight
  • Life ≥ 100K hours
  • With LED Driver
  • 6/8 bit
  • Matte



AUO G121EAN01.0 Mechanical Features

Screen Size : 12.1"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
1280(RGB)×800, WXGA RGB Vertical Stripe 0.068×0.204 mm 0.204×0.204 mm [124PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
261.12×163.2 mm - 278×184 mm 9.29 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 16:10 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
TBD - Antiglare, Hard coating (3H)
Holes & Brackets : Side mounting holes (4 pcs) on left, right bezel

.

Application of  AUO  G121EAN01.0
