Product Details:
|
| Panel Model: | G230HAN01.1 | Panel Size: | 23.0" |
|---|---|---|---|
| Bezel Opening: | 513.784(W)×291.016(H) Mm | Panel Brand: | AUO |
| Panel Type: | A-Si TFT-LCD , LCM | Display Colors: | 16.7M 72% NTSC |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Lamp Type: | 18S4P WLED , 30K Hours , Without Driver |
| High Light: | G230HAN01.1 AUO LCD Panel,0.2652mm AUO LCD Panel,0.2652mm LCM LCD Panel |
||

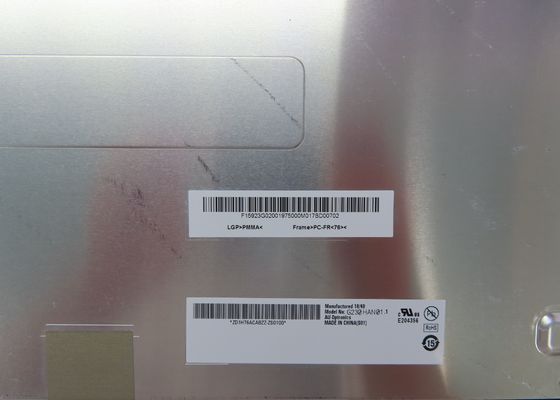

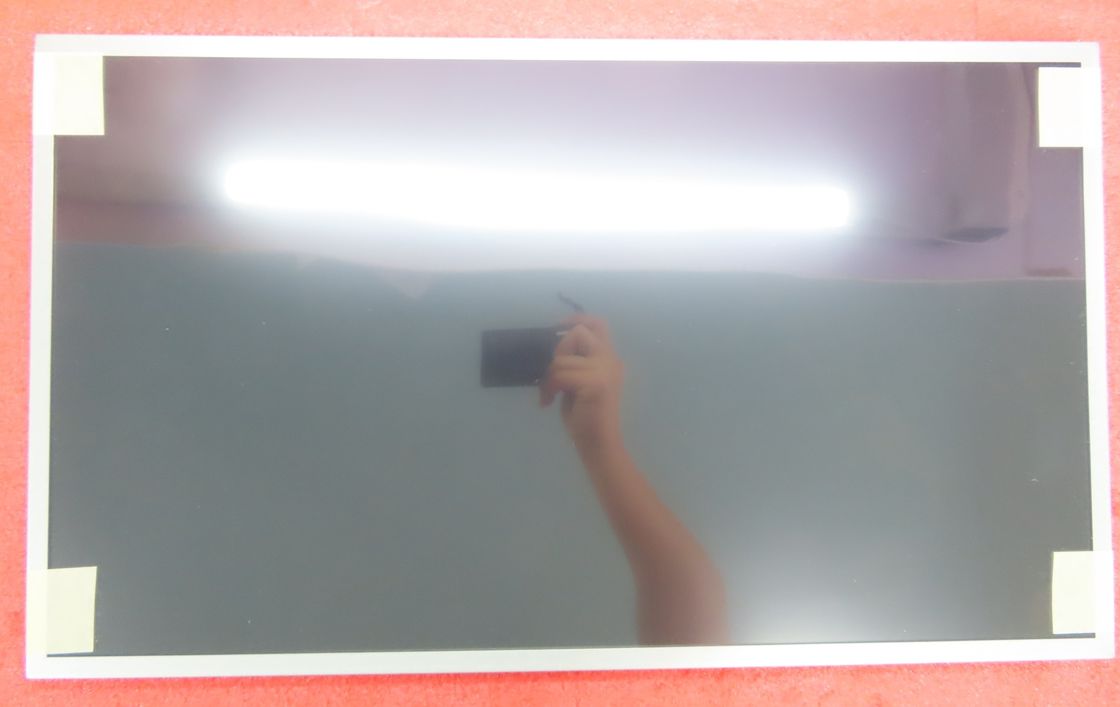

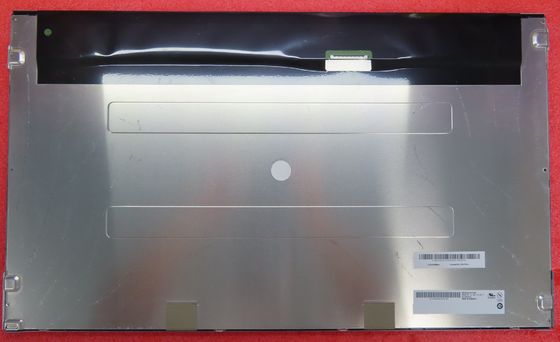

0.2652mm Pixel Pitch 23 Inch LCM G230HAN01.1 AUO LCD Panel
Description Of AUO LCD Panel
G230HAN01.1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. For more latest product detail of G230HAN01.1 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO or it's distributor.
Feature Of AUO LCD Panel
1) Operating Temperature:0 ~ 50 °C
2) Storage Temperature:-20 ~ 60 °C
3) Color Temperature:6485K
4) Luminance:300 cd/m² (Typ.)
5) Work Mode:AHVA, Normally Black, Transmissive
6) Power Consumption:5.9/6.4W (Typ./Max.)
7) Physical Type:Connector
8) Contrast Ratio:1000:1 (Typ.) (Transmissive)
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H598TAN01.0 | AUO | 6.0" |
| H546DAN03.3 | AUO | 5.5" |
| H497DAN02.0 | AUO | 5.0" |
| H495TAN01.1 | AUO | 5.0" |
| H496TAN01.0 | AUO | 5.0" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 10.1" |
| H496TAN01.0 | AUO | 5.5" |
| H496TAN01.0 | AUO | 5.2" |
| H496TAN01.0 | AUO | 1.6" |
| H496TAN01.0 | AUO | 4.6" |
| H496TAN01.0 | AUO | 5.2" |
| H496TAN01.0 | AUO | 4.5" |
| H496TAN01.0 | AUO | 4.7" |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 1.17/1.27A (Typ./Max.) | 5.9/6.4W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector |  |
||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-XB30SSRLA-HF16 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160C | |
| Screen Size : | 23.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1080, FHD | RGB Vertical Stripe | 0.0884×0.2652 mm | 0.2652×0.2652 mm [95PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 509.184×286.416 mm | 513.784×291.016 mm | 533.2×312 mm | 10.5±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | - | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 1.50±0.15Kgs | - | Antiglare | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
Application Of AUO LCD Panel G230HAN01.1
1. Security Cameras
2. Display Unit
3. Cash register equipment
4. On-board display
5. Medical Equipment
Advantage Of AUO LCD Panel
>> Quality ensurance
100% AUO original and brand new!
warranty :12 months !You can enjoy the real panels directly from AUO factory;
>> Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!
>> Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !
