Product Details:
|
| Screen Size: | 23.8 Inch | Luminance: | 250 Cd/m² (Typ.) |
|---|---|---|---|
| Good View At: | Symmetry | Color Depth: | 16.7M 75% NTSC |
| Manufacturer: | AUO | Model Name: | G238HAN01.0 |
| Outline(mm): | 543 × 317.4 × 11.65 (H×V×D) | Backlight: | 17S4P WLED , 30K Hours , No Driver |
| Treatment: | Antiglare, Hard Coating (3H) | Signal Type: | LVDS (2 Ch, 8-bit) , Connector 30 Pins |
| High Light: | 23.8" LCM AUO LCD Panel,G238HAN01.0,8 Bit AUO LCD Panel |
||

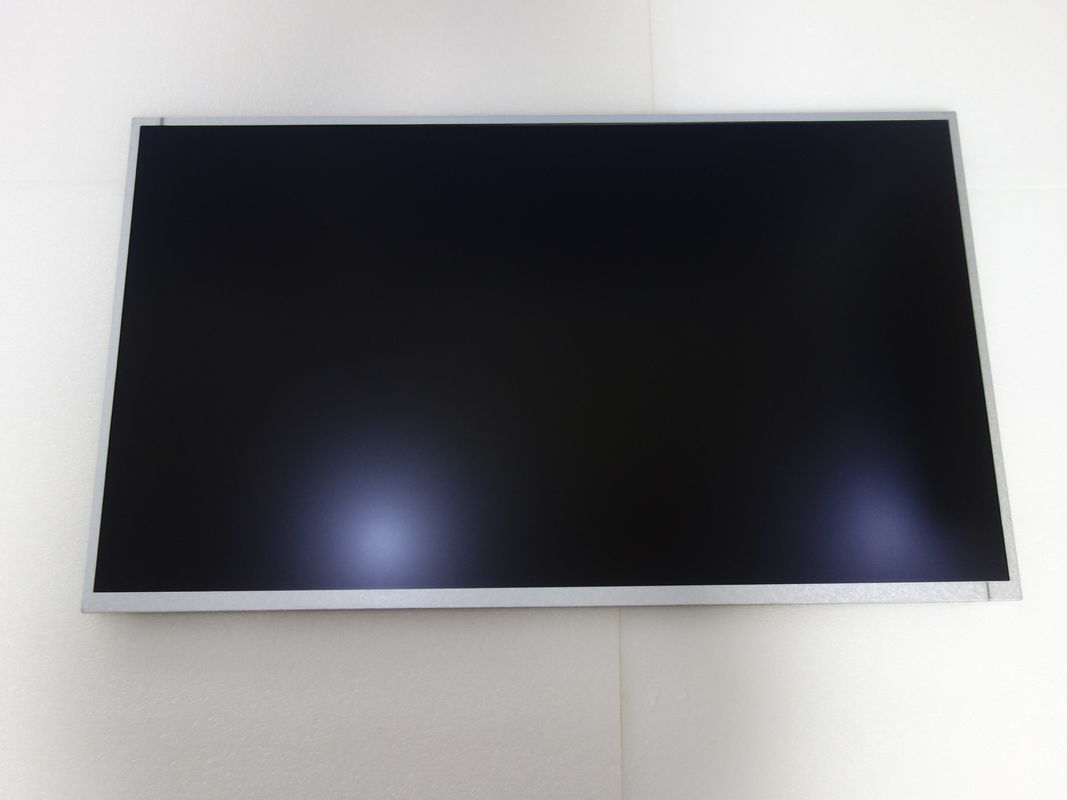

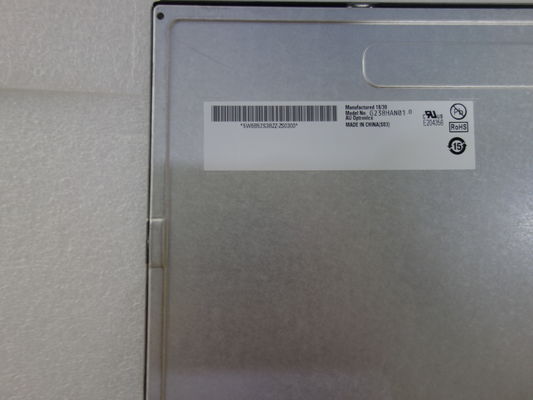

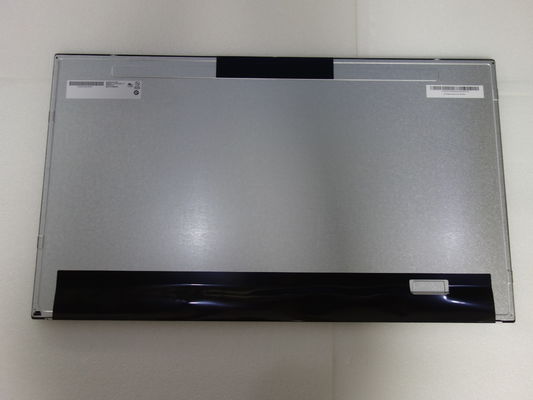

250 Cd/M² 8 Bit G238HAN01.0 23.8" LCM AUO LCD Panel
Description Of AUO LCD Panel
G238HAN01.0 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz. For more latest product detail of G238HAN01.0 We strongly recommend that you should refer to datasheet listed on Panelook.com or contact with AUO or it's distributor.
| Basic Information : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
AUO G238HAN01.0 Mechanical Details
|
Pixel Features : |
Pixel Format 1920(RGB)×1080, FHD Dot Pitch 0.0915×0.2745 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.2745×0.2745 mm (H×V) [92PPI] |
|---|---|
|
Mechanical Size : |
Display Area 527.04×296.46 mm (H×V) Bezel Area 530.2×299.6 mm (H×V) Outline Dim. 543×317.4 mm (H×V) Outline Depth 8.4/11.65 (Typ./.Max.) mm |
|
Outline Features : |
Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style - |
|
Holes & Brackets : |
Side mounting holes (4-M3) on left, right bezel |
|
Other Features : |
Weight 2.28±0.08Kgs Surface Antiglare, Hard coating (3H) |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| H546DAN08.0 | AUO | 5.5" |
| B080XAN03.5 | AUO | 7.9" |
| B080XAN03.2 | AUO | 7.9" |
| H499TAN05.0 | AUO | 5.0" |
| H520DAN01.1 | AUO | 5.2" |
| B116XAN05.0 CELL | AUO | 11.6" |
| H495TAN01.0 | AUO | 5.0" |
| H598QAN02.1 | AUO | 6.0" |
| M185XTN01.2 CELL | AUO | 18.5" |
| H598QAN01.0 | AUO | 6.0" |
| T430HVN01.2 CELL | AUO | 43" |
| H495TAN01.2 | AUO | 5.0" |
Application Of AUO LCD Panel G238HAN01.0
1. On-board display
2. Queuing machine
3. Cash register equipment
4. Security Cameras
5. Medical Equipment
