Product Details:
|
| Panel Brand: | Chimei Innolux | Panel Model: | AT080TN64 |
|---|---|---|---|
| Panel Size: | 8.0" | Panel Type: | A-Si TFT-LCD , LCM |
| Pixel Format: | RGB Vertical Stripe | Surface: | Antiglare |
| Touch Screen: | Without |

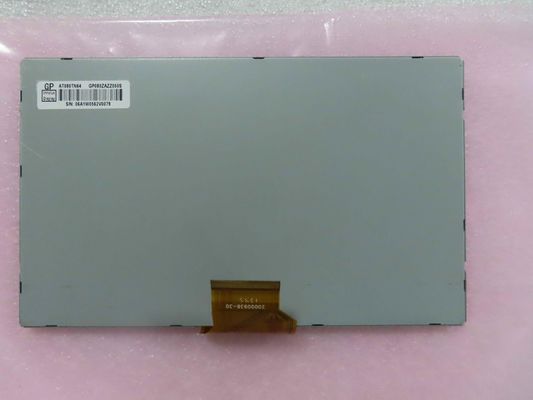

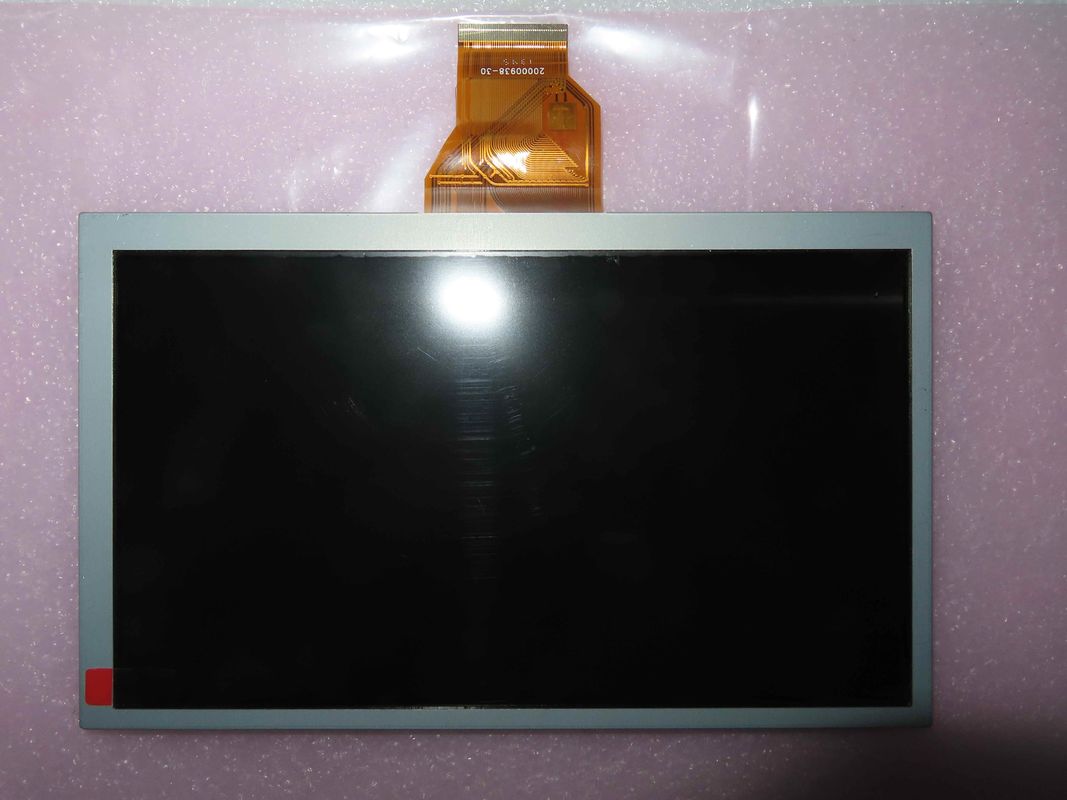

Description Of Innolux LCD Panel
AT080TN64 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×6.7(D) mm, viewing area size of 180.1(W)×103.4(H) mm, with surface treament of Antiglare, net weight of 245g (Typ.).
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information
| N156BGE-P41 | Innolux | 15.6" |
| V500HJ1-PE8 | Innolux | 50" |
| V400HJ6-PE1 | Innolux | 40" |
| CD040JN13 | Innolux | 4.0" |
| HE070IA-04M | Innolux | 7.0" |
| M195FGE-P03 | Innolux | 19.5" |
| M195FGE-P02 | Innolux | 19.5" |
| HB050NA-07A | Innolux | 5.0" |
| F04013-04Z | Innolux | 4.0" |
| F05005-04U | Innolux | 5.0" |
| F05005-03U | Innolux | 5.0" |
| F05005-02U | Innolux | 5.0" |
| F05005-01U | Innolux | 5.0" |
| PP050IC-01B | Innolux | 5.0" |
| V650HP1-PS6 Rev.C1 | Innolux | 65" |
| M220ZGE-P02 | Innolux | 22.0" |
| V420HJ2-P01 | Innolux | 42" |
| F05501-01Z | Innolux | 5.5" |
| EE101IA-01D | Innolux | 10.1" |
| HE070IA-02E | Innolux | 7.0" |
| HE101NA-02C | Innolux | 10.1" |
| ZE090NA-01B | Innolux | 9.0" |
| HE080NA-04I | Innolux | 8.0" |
| HE070NA-13C | Innolux | 7.0" |
| HE070NA-13B | Innolux | 7.0" |
| HE080IA-01D | Innolux | 8.0" |
| Basic Information : | Brightness | 450 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 10/15 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6638K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) |
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤0.1DVDD≤0.3DVDD; 0.7DVDD≤0.9DVDD≤DVDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) | Current Input | 4.0/20.0/0.2/0.2mA (Typ.)(DIDD/AIDD/IGH/IGL) | ||
| Consumption | 0.226W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 50 pins | 1 pcs | DRGB-50P1C8B-115A | |||
