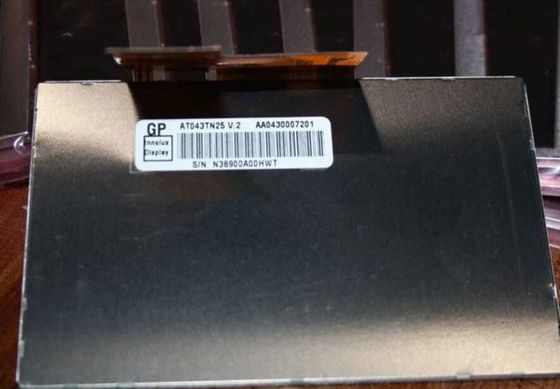

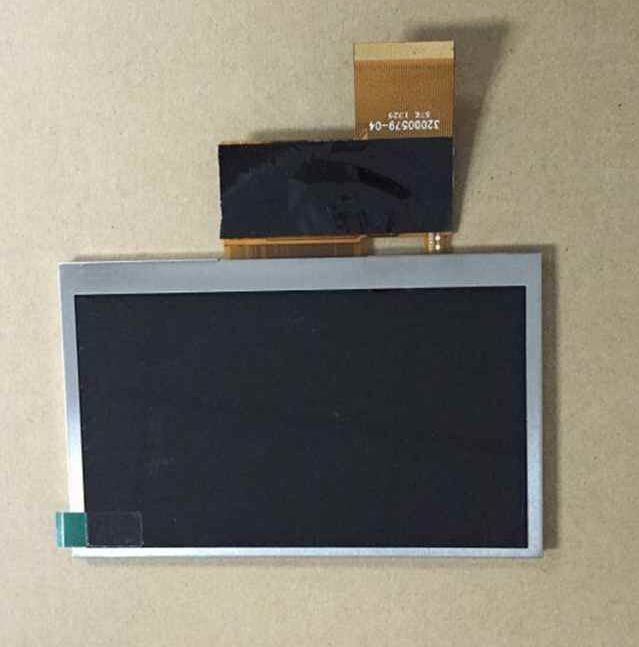

Product Details:
|
| Manufacturer: | Chimei Innolux | Model Name: | AT043TN25 V.2 |
|---|---|---|---|
| Screen Size: | 4.3 Inch | Screen Type: | LCM , A-Si TFT-LCD |
| Arrangement: | RGB Vertical Stripe | Touchscreen: | Without |
| Interface Type: | Parallel RGB (1 Ch, 8-bit) 40 Pins FPC | Treatment: | Antiglare |
4.3 inch Description Of Innolux LCD Panel
| Basic Detail : | Manufacturer |  |
Model Name | AT043TN25 V.2 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | AT043TN25 V2 | |
| Panel Size | 4.3 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | |
|
| Features : |
|
|||
| Remarks : | 2 in 1 FPC | |||
| Panel Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×272 [WQVGA] | RGB Vertical Stripe | 0.198×0.198 [128PPI] | 0.066×0.198 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 95.04(H) × 53.856(V) | 98.7(H) × 57.5(V) | 105.5(H) × 67.2(V) | 2.9±0.2 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | - | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 45.0g (Typ.) | - | Antiglare | ||
Application Of Chimei Innolux AT043TN25 V.2
1. Automotive Display
2. Protable Navigation
3. Health care
4. electron
5. astronautic flight
6. electric
Pre-sales service :
1. Our team design and make solutions based on different requirements from different customers.
2. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.
3. We have professional engineer customer to keep fastly reply.
Please let us know your requirements on panels:
1), Size
2), Resolution
3), Brightness/Luminance
4), Viewing Angle
5), Light Source
6), Signal Interface: LVDS or eDP or V-by-One
or tell us the exact model # for reference.
we will quote the same model # or recommend alternatives when we couldn't provide the exact model or when we think there is a better choice for you.
