Product Details:
|
| Size: | 8.9 Inch | Resolution: | 1024*600 |
|---|---|---|---|
| Brightness: | 300 | C/R: | 700:1 |
| View Angle: | 88/88/88/88 | Colors: | 262K/16.7M |
| Best View On: | Symmetry | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 30 Pins Connector |
| Lamp Type: | WLED , 26K Hours , Without Driver | Touch Screen: | Without |
| High Light: | NL10260BC19-01D,NL10260BC19-01D LCD Panel,Replaceable TFT NEC LCD Panel |
||

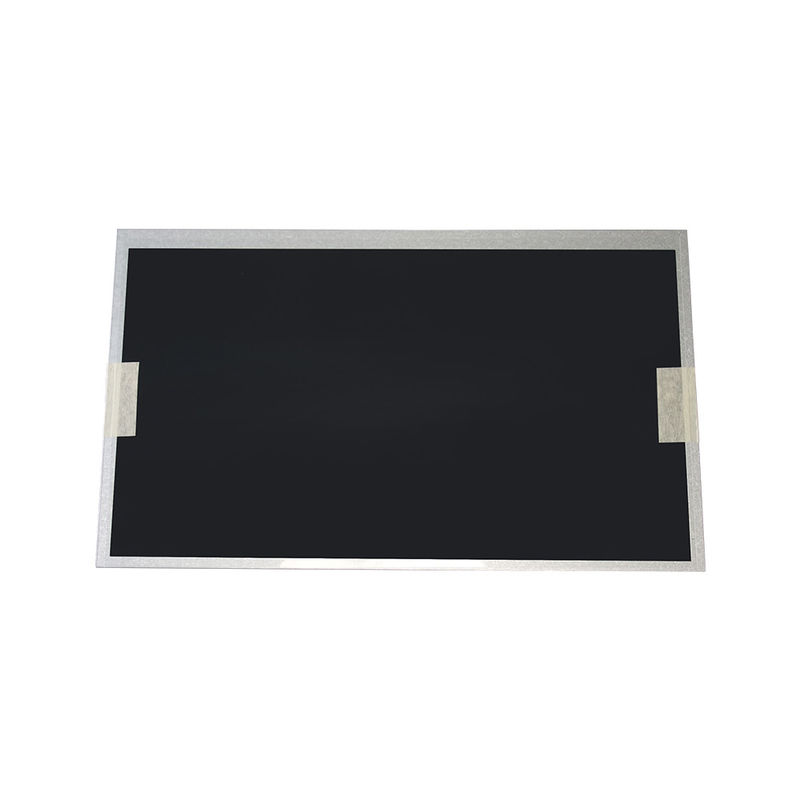

TFT Replaceable NL10260BC19-01D NEC LCD Panel For Industrial
1.NL10260BC19-01D Mechanical Features:
| Panel Size : | 8.9 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.0635×0.1890 mm | 0.1905×0.1890 mm [133PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 195.072×113.4 mm | 197.8×116.0 mm | 214×129 mm | 4.2/6.2 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 17:10 (W : H) | Landscape type | - | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 170/180g (Typ./Max.) | Antiglare, Hard coating (3H) | ||
2.NL10260BC19-01D Optical Features:
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | UA-SFT, Normally Black, Transmissive | 700:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 10/15 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 60% | 77% | 61% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 62% | 45% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.40 (Typ./Max.)(5 points) | ||
3.NL10260BC19-01D Interface Features:
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 400/770mA (Typ./Max.) | 3.3V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | LVDS (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | DF19L-30P-1H | 1 pcs | 1.0 mm | 30 pins | LVDS-30P1C8B-092A | |
4.NL10260BC19-01D Backlight Features:
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 4 strings | - | 26K(Typ.) | Replaceable (89LHS07) | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 15.0/15.4mA (Typ./Max.) | 28.35/31.5V (Typ./Max.) | |||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
5.FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q4: Do you accept sample order?
A: Yes,sample order is welcome.
Q5: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
