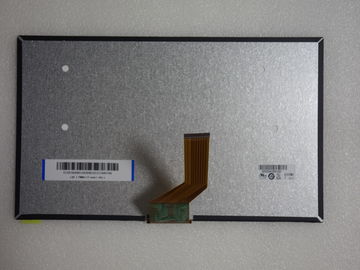

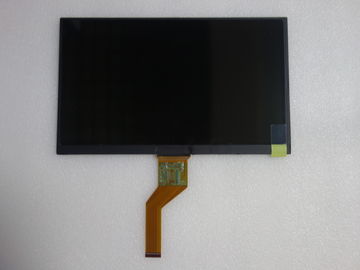

Product Details:
|
| Size: | 10.1 Inch | Resolution: | 1024×600 |
|---|---|---|---|
| C/R: | 500:1 | View Angle: | 70/70/60/60 |
| Colors: | 262K/16.7M | Backlight: | WLED |
| High Light: | auo lcd screen,auo lcd display |
||
| Screen Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1024(RGB)×600, WSVGA | RGB Vertical Stripe | 0.0725×0.2088 mm | 0.2175×0.2088 mm | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 222.72×125.28 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | - | |
2.AUO G101STN01.F Optical Features
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | 70/70/60/60 (Typ.)(CR≥10) | 7/9 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | - |
3.AUO G101STN01.F Backlight Features
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| - | Included in panel signal interface | - | ||||
