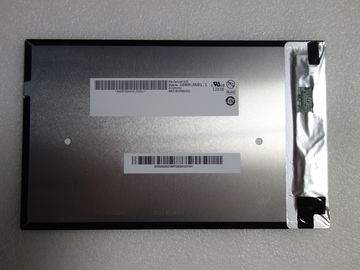

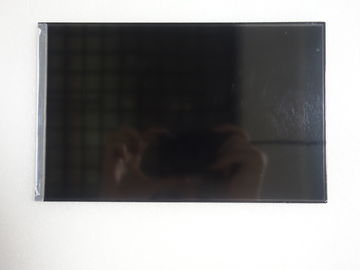

Durable Industrial Lcd Screen 8 Inch 1200×1920 Resolution A-Si TFT-LCD G080UAN01.0

Durable Industrial Lcd Screen 8 Inch 1200×1920 Resolution A-Si TFT-LCD G080UAN01.0
Durable Industrial Lcd Screen 8 Inch 1200×1920 Resolution A-Si TFT-LCD G080UAN01.0 Durable Industrial Lcd Screen 8 Inch 1200×1920 Resolution A-Si TFT-LCD G080UAN01.0

Large Image :  Durable Industrial Lcd Screen 8 Inch 1200×1920 Resolution A-Si TFT-LCD G080UAN01.0

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G080UAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time: 1-3 Working Days
Payment Terms: TT / Escrow 10(we pay hkinventory escrow fee) / Paypal / WesternUnion
Supply Ability: 500PCS

Durable Industrial Lcd Screen 8 Inch 1200×1920 Resolution A-Si TFT-LCD G080UAN01.0

Description
Brand: AUO Size: 8 Inch
Resolution: 1200*1920 Brightness: 500
C/R: 1000:1 View Angle: 89/89/89/89
Touchscreen: Without
High Light:

auo lcd screen

,

auo lcd display

1.AUO G080UAN01.0 Optical Features


Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
500 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 27 (Typ.)(Tr+Tf)
Best View on Display Mode Contrast Ratio
Symmetry AHVA, Normally Black, Transmissive 1000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6438K 16.7M (8-bit) X:0.313; Y:0.335
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
60% 81% 63%
DCI-P3 Coverage Rec.2020 Coverage Remarks
62% 45% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.25/1.54 (Max.)(5/13 points)


2.AUO G080UAN01.0 Mechanical Features


Panel Size : 8.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1200(RGB)×1920 [WUXGA] RGB Vertical Stripe 0.0897×0.0897 0.0299×0.0897
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
107.64(H) × 172.224(V) - 114.6(H) × 184.13(V) 2.3/3.95 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Portrait type 10:16 (H:V) -
Mounting : Without
Other Detail : Weight Panel Cover Treatment
80g (Max.) - Glare (Haze 0%)


3.AUO G080UAN01.0 Backlight Features


Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
WLED Edge light type 8S3P 3 strings 20K(Min.) -
WLED Electrical : Voltage Supply Current Supply

Power

22.8/24.8V (Typ./Max.) 19mA (Typ.) 1.42W (Typ.)
Interface Features : Position Backlight Driver Type
- No Included in panel signal interface


4.AUO G080UAN01.0 Interface Features


Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.) 153mA (Max.) 0.46W (Max.)
Interface Features : Position Signal Type
- MIPI Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
HRS FH26W-45S-0.3SHW 0.3 mm 45 pins 1 pcs


5.Payment
Durable Industrial Lcd Screen 8 Inch 1200×1920 Resolution A-Si TFT-LCD G080UAN01.0 0
6.FAQ


Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
