Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2

Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2
Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2 Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2 Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2

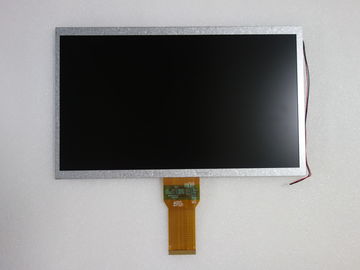

Large Image :  Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G101STN01.2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability: 500PCS
Contact Now

Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2

Description
Size: 10.1 Inch Resolution: 1024×600
Luminance: 350 Cd/m² (Typ.) Viewing Angle: 70/70/60/60 (Typ.)(CR≥10)
Pixel Number: 1024(RGB)×600 (WSVGA) Active Area(mm): 222.72 × 125.28 (H×V)
Bezel Area(mm): 224.72 × 127.28 (H×V) Contrast Ratio: 500 : 1 (Typ.) (TM)
Response: 7/9 (Typ.)(Tr/Td) Ms Touchscreen: Without
High Light:

auo display panel

,

auo lcd screen

1.General Description



This specification applies to the Color Active Matrix Liquid Crystal Display G101STN01.2 composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight.
The screen format is intended to support Wide SVGA (1024(H) x 600(V)) screen and 262k/16.7M colors (RGB 18/24-bits).
And PCBA is not embedded in G101STN01.2. All input signals are RGB interface.
G101STN01.2 designed with wide viewing angle; wide temperature and long life LED backlight (30k hrs) is well suited for industial applications.
G101STN01.2 is a RoHS product.


2.AUO G101STN01.2 Optical Details

Luminance 350 cd/m² (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive)
Good View at - Response Speed 7/9 (Typ.)(Tr/Td) ms
Viewing Angle 70/70/60/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Chromaticity Wx:0.313; Wy:0.329 Support Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Temperature 6485K White Variation 1.25 (Max.)(5 points)
NTSC Ratio 46% sRGB 64% coverage
Adobe RGB 48% coverage DCI-P3 47% coverage
Rec.2020 34% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
3.Service
Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2 0

4.FAQ

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
Anti Glare Hard Coating Auo Touch Panel 1024×600 3H TFT-LCD 10.1 Inch G101STN01.2 1
