TFT LCD G050VTN01.0 Auo Display Panel 5 Inch C/R 600/1 Resolution 800×480

TFT LCD G050VTN01.0 Auo Display Panel 5 Inch C/R 600/1 Resolution 800×480
TFT LCD G050VTN01.0 Auo Display Panel 5 Inch C/R 600/1 Resolution 800×480 TFT LCD G050VTN01.0 Auo Display Panel 5 Inch C/R 600/1 Resolution 800×480 TFT LCD G050VTN01.0 Auo Display Panel 5 Inch C/R 600/1 Resolution 800×480

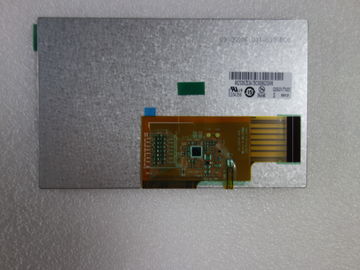

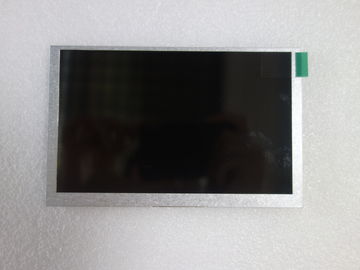

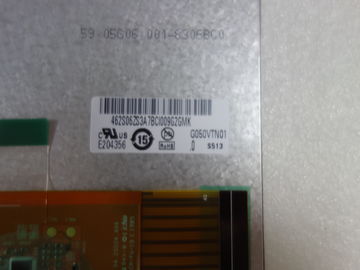

Large Image :  TFT LCD G050VTN01.0 Auo Display Panel 5 Inch C/R 600/1 Resolution 800×480

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G050VTN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability: 500PCS

TFT LCD G050VTN01.0 Auo Display Panel 5 Inch C/R 600/1 Resolution 800×480

Description
Size: 5 Inch Resolution: 800*480
Luminance: 370 Cd/m² (Typ.) Viewing Angle: 75/75/65/75 (Typ.)(CR≥10)
Color Depth: 16.2M 50% NTSC Mass: 58.0±2.0g
Work Mode: TN, Normally White, Transmissive Touchscreen: Without
High Light:

auo lcd screen

,

auo lcd display

1.General Description



This specification applies to the 5.0 inch color TFT LCD module G050VTN01.0.
G050VTN01.0 is built in timing controller and TTL interface.
The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (6bits + FRC)
G050VTN01.0 is a RoHS product.

2.AUO G050VTN01.0 Optical Details

Items   Unit Specifications

Screen Diagonal   [inch] 5.0

Active Area   [mm] 108.0(W) x 64.8(H)

Pixels H x V     800 x 3(RGB) x 480

Pixel Pitch   [mm] 0.135(W) x 0.135(H)

Pixel Arrangement     R.G.B. Vertical Stripe

Display Mode     TN, Normally White

Nominal Input Voltage VDD   [Volt] 3.3 typ.

LCD Typical Power Consumption   [Watt] 0.25 typ.

Back Light Power Consumption   [Watt] 0.54 typ.

Weight   [Grams] 58±2

Physical Size   [mm] 120.7(W) x 76.3(H)x 3.1(D)

Electrical Interface     40 pins RGB 8-bits

Surface Treatment     Glare type, 3H

Support Color     16.2M(6 bits + FRC)

Temperature Range   [oC]
Operating   -20 to +70
Storage (Non-Operating)   [oC] -30 to +80
RoHS Compliance     RoHS Compliance

Gray Scale Inversion Direction     6”o’clock




3.Reliability Test Criteria

  Items Required Condition   Note

  Temperature 60/90%,240 hours, Power On
  Humidity Bias
  High Temperature 70,240 hours
  Operation
  Low Temperature -20,240 hours
  Operation

  Hot Storage 80,240 hours

  Cold Storage -30,240 hours

  Thermal Shock -30(30mins)<- -> + 80 (30 mins) Total 50 Cycles

  Shock Test 60G,6ms, 3 times for each direction
  (Non-Operating)

  Vibration Test Frequency Range : 10 ~ 55 Hz
    Stroke : 1.5mm Sweep : 10 Hz ~ 55 Hz ~ 10 Hz   Note 1
  (Non-Operating)

    2 hours for each direction of X, Y, Z(6 hours of total)
  Vibration Test Acceleration :2.0G
    Frequency Range : 10 ~ 100 Hz
  (Packaging Box)
    2 hours for each direction of X, Y, Z.(6 hours of total)
  On/off test On/10 sec, Off/10 sec, 30,000 cycles


    Height: 750mm
  Drop Test Drop test must be done 6 times

    Once corner each time
    One flat sides each time
    Contact Discharge: ± 4KV, 150pF(330Ω )
  ESD Air Discharge: ± 8KV, 150pF(330Ω )   Note 1 & 2

    6 times at each test point



4.Safety



4.1 Sharp Edge Requirements



There will be no sharp edges or corners on the display assembly that could cause injury.



4.2 Materials



4.2.1 Toxicity



 There will be no carcinogenic materials used anywhere in the display module. If toxic materials are used, they will be reviewed and approved by the responsible AUO toxicologist.



4.2.2 Flammability



All components including electrical components that do not meet the flammability grade UL94-V1 in the module will complete the flammability rating exception approval process.



The pRxINted circuit board will be made from material rated 94-V1 or better. The actual UL flammability rating will be pRxINted on the pRxINted circuit board.



  4.3 Capacitors



       If any polarized capacitors are used in the display assembly, provisions will be made to keep them from being inserted          backwards.



 4.4 National Test Lab Requirement



The display module will satisfy all requirements for compliance to:



UL 1950, First Edition U.S.A. Information Technology Equipment
