800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

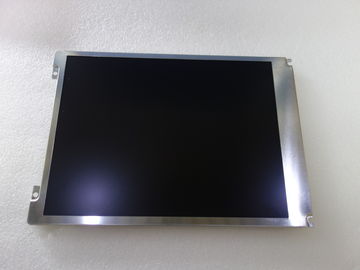

800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable

800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable
800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable 800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable

Large Image :  800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable

Product Details:
Place of Origin: Japan
Brand Name: AUO
Certification: ISO9001
Model Number: G070VTN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal

800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable

Description
Size: 7 Inch Resolution: 800×480
Luminance: 300 Cd/m² (Typ.) Viewing Angle: 65/65/50/60 (Typ.)(CR≥10)
Good View At: 6 O'clock Color Depth: 262K/16.2M 50% NTSC
Contrast Ratio: 500 : 1 (Typ.) (TM) Response: 12/18 (Typ.)(Tr/Td) Ms
Backlight: 3S7P WLED , 30K Hours , No Driver Touchscreen: Without
High Light:

auo lcd screen

,

auo lcd display

1.General Description

This specification applies to the 7.0 inch color TFT LCD module G070VTN01.0.

G070VTN01.0 is built in timing controller and LVDS interface. The screen format is intended to support the WVGA (800(H) x 480(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). G070VTN01.0 is a RoHS product.



2. Display Characteristics



 2.1AUO G070VTN01.0 Optical Details

Basic Detail :
Luminance:300 cd/m² (Typ.)
Contrast Ratio:500:1 (Typ.) (Transmissive)
Good View at:6 o'clock
Response Speed:12/18 (Typ.)(Tr/Td) ms
Viewing Angle:65/65/50/60 (Typ.)(CR≥10)
Operating Mode:TN, Normally White, Transmissive
Color Performance :
Chromaticity:Wx:0.310; Wy:0.330
Support Color:262K/16.2M (6-bit / 6-bit + FRC)
Color Temperature:6638K
White Variation:1.30 (Max.)(5 points)



2.2AUO G070VTN01.0 Mechanical Details

Pixel Features :
Number of Pixel:800×480(RGB), WVGA
Arrangement:RGB Horizontal Stripe
Dot Pitch(W×H):0.1905×0.0635 mm
Pixel Pitch(W×H):0.1905×0.1905 mm
Physical Size :
Active Viewing:152.4(W)×91.44(H) mm
Overall Dim.:170(W)×111(H) mm
Bezel Opening:155.2(W)×92.84(H) mm
Overall Depth:8.0±0.3 mm
Outline Features :
Form Shape:Flat Rectangle
Orientation:Landscape type
Aspect Ratio(W:H):15:9
Shape Style:-
Fixation :
Side mounting holes (4-M2) on left, right bezel
Other Detail :
Mass:180g
Surface:Antiglare, Hard coating (3H)

3.Service
800×480 Resolution Auo Touch Panel 7 Inch G070VTN01.0 Original TFT-LCD Durable 0

4.FAQ

Q1:What's the quality of your LCD Panel?



A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.



Q2:What is your return and refund policy?



A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.



Q3:How long is the lead time?



A:The lead time is about 2-3 working days after receipt of payment.



Q4:Do you accept sample order?



A:Yes,sample order is welcome.



Q5:How can I get the quotation?



A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
