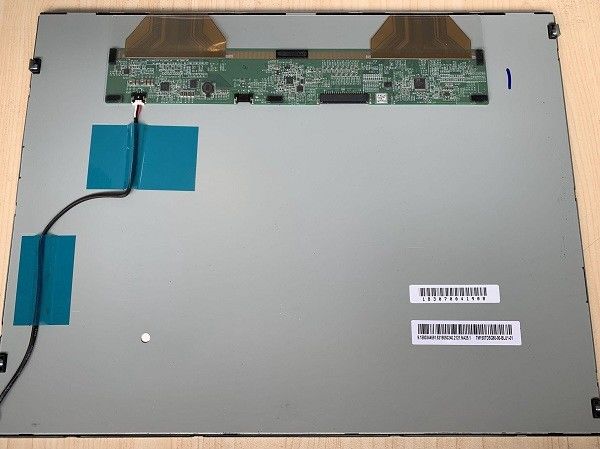

Product Details:
|
| Size: | 15 Inch | Composition: | LCM |
|---|---|---|---|
| Resolution: | 1024×768 | Brightness: | 350 |
| C/R: | 800:1 | View Angle: | 80/80/80/80 |
| Colors: | 262K/16.7M | Backlight: | WLED |
| Interface: | LVDS | Application: | Industrial |
| High Light: | lcd display white screen,lcd panel screen |
||
1.General Specifications
| Feature | Spec | |
|
Display Spec. |
Size | 15 inch |
| Resolution | 1024xRGBx768 | |
| Technology Type | a-Si | |
| Pixel Configuration | RGB vertical stripe | |
| Pixel pitch(mm) | 0.297(H) × 0.297(V) | |
| Display Mode | TM with Normally White | |
| Surface Treatment | Anti Glare | |
| Viewing Direction | 12:00 | |
| Gray Scale Inversion Direction | 6:00 | |
|
Mechanical Characteristics |
LCM (W x H x D) (mm) | 326.5(H)×253.5 (V) ×10.0 (D) (max.) |
| Active Area(mm) | 304.128(W) x 228.096 (V) (typ.) | |
| With /Without TSP | Without TSP | |
| Connection Type |
CN1:185083-20121-3 CN2:MSB24038P5 |
|
| Weight (g) | TBD | |
|
Backlight |
LED backlight type Replaceable lamp holder for backlight |
|
| Electrical Characteristics | Interface | LVDS 1port |
| Color Depth | 16.7M/262K | |
Note 1: Viewing direction for best image quality is different from TFT definition. There is a 180 degree shift.
Note 2: Requirements on Environmental Protection: RoHS
Note 3: LCM weight tolerance: ± 5%
2. Driving For LCD
| Parameter | Symbol | min. | typ. | max. | Uni t | Remarks | |
| Power supply voltage | VCC | 3.14 | 3.3 | 3.46 | V | - | |
| Power supply ripple | Vp-p | 200mV | V | Including spike noise | |||
| Power supply current | ICC | - | mA |
at VDD = 3.3V Note 1 |
|||
| Permissible ripple voltage | VRP | - | - | 100 | mV | VDD | |
| Differential input voltage | ︱Vid︱ | 250 | 450 | mV | |||
|
Differential input threshold voltage for LVDS receiver |
High | VTH | - | - | 100 | mV |
VCM = 1.25V Note2 |
| Low | VTL | -100 | - | mV | |||
| Input voltage width for LVDS receiver | Vi | 0 | - | 1.90 | V | - | |
| Terminating resistor | RT | - | 100 | - | Ω | - | |
| Rush current | Irush | - | - | 1.5 | A | Note3 | |
| Input voltage for MSL signals | High | VFH | 0.4VCC | VCC | V | ||
| Low | VFL | 0 | 0.3VCC | V | |||
Note 1: Black mode, 65MHz
Note 2: Common mode voltage for LVDS receiver
Note 3: Measurement Conditions:
3.DISPLAY COLORS AND DATA SIGNAL
This product can display in equivalent to 16,777,216 colors in 254 scales.
Also the relation between display colors and input data signals is as the following table.
And it can display in equivalent to 262,144 colors in 64 scales, without data signals R7, R6, G7, G6, B7, B6 in the following table.
