1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop

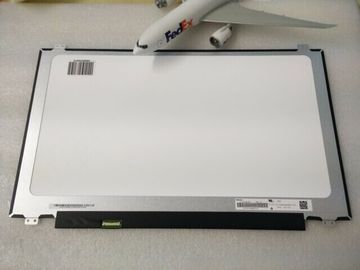

Large Image : 1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop

Product Details:

Place of Origin:	Taiwan
Brand Name:	Innolux
Certification:	ISO9001
Model Number:	N173HCE-E31

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	50
Packaging Details:	Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time:	1-3 Working Days
Payment Terms:	TT / Escrow 10(we pay hkinventory escrow fee) / Paypal / WesternUnion

Contact Now

1920*1080 Resolution Innolux LCD Panel 17.3 Inch N173HCE-E31 Durable For Laptop

Description

Size:	17.3 Inch	Resolution:	1920×1080
Luminance:	300 Cd/m² (Typ.)	Contrast Ratio:	700:1 (Typ.) (TM)
View Direction:	Symmetry	Response Time:	14/11 (Typ.)(Tr/Td)
Viewing Angle:	89/89/89/89 (Typ.)(CR≥10)	Operating Mode:	AAS, Normally Black, Transmissive
Interface Type:	30 Pins EDP (2 Lanes) , Connector	Designed For:	Laptop
High Light:	lcd display panel , innolux lcd screen

1. GENERAL DESCRIPTION

1.1 OVERVIEW

N173HCE-E31 is a 17.3” TFT Liquid Crystal Display module with LED Backlight unit and 30 pins eDP interface. This module supports 1920 x 1080 FHD model and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.

1.2GENERAL SPECIFICATI0NS

Item	Specification	Unit	Note
Screen Size	17.3” diagonal
Driver Element	a-si TFT active matrix	-	-
Pixel Number	1920 x R.G.B. x 1080	pixel	-
Pixel Pitch	0.1989 (H) x 0.1989 (V)	mm	-
Pixel Arrangement	RGB vertical stripe	-	-
Display Colors	262,144	color	-
Transmissive Mode	Normally black	-	-
Surface Treatment	Hard coating (3H), High resolution Adaptable AG	-	-
Luminance, White	300	Cd/m2
Power Consumption	Total TBD W (Max.) @ cell TBD W (Max.), BL TBD W (Max.)

1.3LED CONVERTER SPECIFICATION

Parameter		Symbol	Value			Unit	Note
Parameter		Symbol	Min.	Typ.	Max.	Unit	Note
Converter Input Power Supply Voltage		LED_Vccs	(6.0)	(12.0)	(21.0)	V
Converter Inrush Current		ILEDRUSH	-	-	1.5	A	(1)
LED_EN Control Level	Backlight On		(2.2)	-	(5.0)	V	(4)
LED_EN Control Level	Backlight Off		0	-	(0.6)	V	(4)
LED_EN Impedance		RLED_EN	30K	-	-	ohm	(4)
PWM Control Level	PWM High Level		(2.2)	-	5	V	(4)
PWM Control Level	PWM Low Level		0	-	(0.6)	V	(4)
PWM Impedance		RPWM	30K	-	-	ohm	(4)
PWM Control Duty Ratio			(5)	-	100	%
PWM Control Permissive Ripple Voltage		VPW M_pp	-	-	100	mV
PWM Control Frequency		fPWM	(190)	-	(2K)	Hz	(2)
LED Power Current	LED_VCCS =Typ.	ILED	(TBD)	(TBD)	(TBD)	mA	(3)

2.1STORAGE PRECAUTIONS

(1) High temperature or humidity may reduce the performance of module. Please store LCD module within the specified storage conditions.

(2) It is dangerous that moisture come into or contacted the LCD module, because the moisture may damage LCD module when it is operating.

It may reduce the display quality if the ambient temperature is lower than 10 ºC. For example, the response time will become slowly, and the starting voltage of LED will be higher than the room temperature.

2.2OPERATION PRECAUTIONS

(1) Do not pull the I/F connector in or out while the module is operating.(2) Always follow the correct power on/off sequence when LCD module is connecting and operating. This can prevent the CMOS LSI chips from damage during latch-up.

The startup voltage of Backlight is approximately 1000 Volts. It may cause electrical shock while assembling with converter. Do not disassemble the module or insert anything into the Backlight unit

3. CARTON
