8.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen

8.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen
8.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen 8.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen

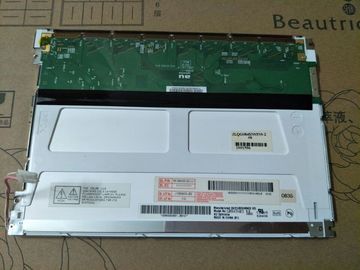

Large Image :  8.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: G084SN03 V9
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

8.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen

Description
Manufacturer: AUO Model Name: G084SN03 V9
Screen Size: 8.4 Inch Screen Type: LCM, A-Si TFT-LCD
Refresh Rate: 60Hz Touchscreen: Without
High Light:

auo display panel

,

auo lcd screen

G084SN03 V9 AUO 8.4 inch LCM 800×600 LCD screen





AUO G084SN03 V3 Mechanical Details

Pixel Features : Pixel Format 800(RGB)×600 [SVGA] Dot Pitch 0.071×0.213 mm (H×V)
Configuration RGB Vertical Stripe Pixel Pitch 0.213×0.213 mm (H×V)
Mechanical Size : Display Area 170.4×127.8 mm (H×V) Bezel Area 173.8×131.2 mm (H×V)
Outline Dim. 203×142.5 mm (H×V) Outline Depth 5.7 (Typ.) mm
Outline Features : Form Factor Flat Rectangle Orientation Landscape type
Aspect Ratio 4:3 (H:V) Shape Style -
Holes & Brackets : Face mounting holes (2-Φ3.0, 2-R1.5)
Other Features : Weight TBD Surface Antiglare, Hard coating (3H)





AUO G084SN03 V3 Optical Details

Basic Information : Brightness 250 cd/m² (Typ.) Contrast Ratio 600:1 (Typ.) (Transmissive)
Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive
Viewing Direction - Response Time 20/10 (Typ.)(Tr/Td) (ms)
Color Performance : Chromaticity Wx:0.310; Wy:0.330 Color Numbers 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut 45% NTSC (CIE1931) Uniformity 1.33 (Typ.)(9 points)



AUO G084SN03 V3 Electronics Details

Frame Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 3.66W (Typ.)





We also have other industrial LCD panels, pls contact to us for the further information

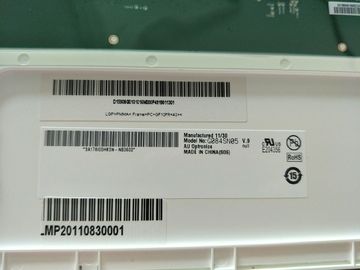

8.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen 08.4'' AUO LCD Panel 800×600 Flat Rectangle G084SN03 V9 LCM Without Touchscreen 1
