Product Details:
|
| Brand: | AUO | Model: | G190EG02 V2 |
|---|---|---|---|
| Diagonal Size: | 19.0 Inch | Type: | A-Si TFT-LCD , LCM |
| Frame Rate: | 60Hz | Touch Panel: | Without |
| High Light: | auo display panel,auo lcd display |
||

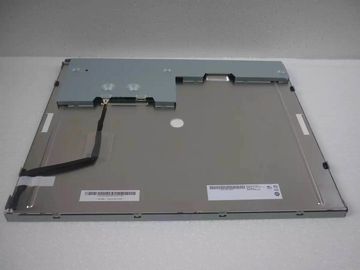

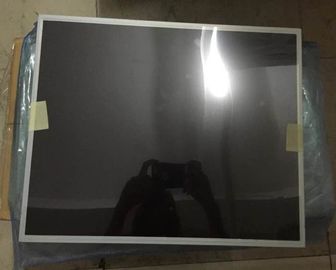

G190EG02 V2 AUO 19 inch LCM 1280×1024 Touch screen
AUO G190EG02 V2 Optical Features
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 15/5 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | MVA, Normally Black, Transmissive | 2000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Gamut | Display Colors | White Coordinate |
| 70% NTSC (CIE1931) | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
AUO G190EG02 V1 Mechanical Features
| Panel Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×1024 [SXGA] | RGB Vertical Stripe | 0.294×0.294 | 0.098×0.294 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 376.32(H) × 301.056(V) | 380.32(H) × 305.06(V) | 396(H) × 324(V) | 18.9 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 5:4 (H:V) | - | |
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 1.75Kgs (Typ.) | - | Antiglare | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 30.6W |
