Product Details:
|
| Panel Brand: | AUO | Panel Model: | G270ZAN01.2 |
|---|---|---|---|
| Panel Size: | 27.0 Inch | Panel Type: | A-Si TFT-LCD, LCM |
| Frequency: | 144Hz | Touch Screen: | Without |
| High Light: | auo display panel,auo lcd display |
||

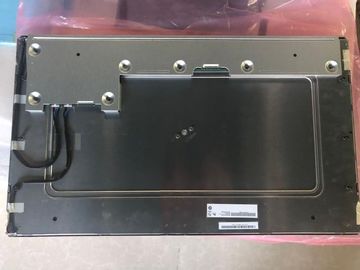

G270ZAN01.2 AUO 27 inch LCM 1920×1080 LCD display
AUO G270ZAN01.2 Mechanical Details
| Pixel Features : | Resolution | 3840(RGB)×2160, UHD | Dot Pitch(mm) | 0.05175×0.15525 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.15525×0.15525 (H×V) | |
| Mechanical Size : | Active Area(mm) | 596.16(H) × 335.14(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Basic Information : | Luminance(cd/m²) | 800 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 16 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Gamut | 90% NTSC (CIE1931) | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Frame Rate : | 144Hz |
|---|---|
| Reverse Scan : | No |
We also have other industrial LCD panels, pls contact to us for the further information
