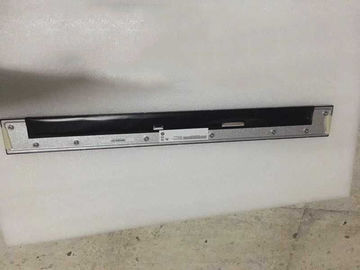

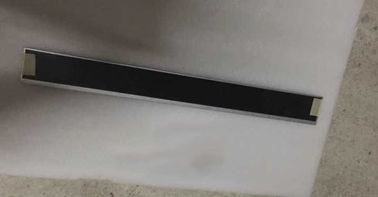

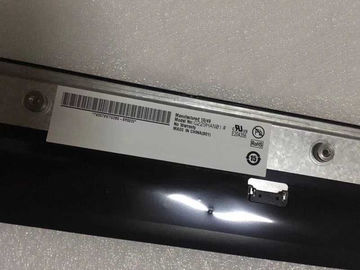

Product Details:
|
| Panel Brand: | AUO | Panel Model: | G229HAN01.0 |
|---|---|---|---|
| Panel Size: | 22.9 Inch | Panel Type: | A-Si TFT-LCD, LCM |
| Frequency: | 60Hz | Touch Panel: | Without |
| High Light: | auo lcd screen,auo lcd display |
||
| Pixel Features : | Resolution | 1920(RGB)×165 | Dot Pitch(mm) | 0.1005×0.3105 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3105×0.3105 (H×V) | |
| Mechanical Size : | Active Area(mm) | 578.88(H) × 49.7475(V) | Bezel Area(mm) | 580.88(H) × 51.75(V) |
| Outline Dim.(mm) | 587.08(H) × 62.05(V) | Depth(mm) | 10.71 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | >3:1 (H:V) | Orientation | Portrait type | |
| Mounting : | Rear mounting holes (8-M3) | |||
| Other Spec : | Weight | 460g (Typ.) | Treatment | Antiglare, Hard coating (3H) |
AUO G229HAN01.0 Optical Details
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AHVA, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) | White Uniformity | - |
AUO G229HAN01.0 Electronics Details
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 7.53W (Typ.) |
We also have other industrial LCD panels, pls contact to us for the further information
