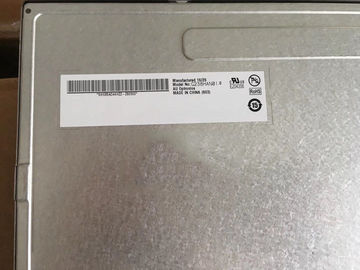

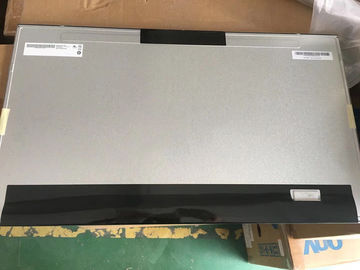

60Hz Frame Rate Auo Tft Lcd G238HAN01.1 AUO 23.8 Inch LCM 1920×1080 Display

60Hz Frame Rate Auo Tft Lcd G238HAN01.1 AUO 23.8 Inch LCM 1920×1080 Display

    • 60Hz Frame Rate Auo Tft Lcd G238HAN01.1 AUO 23.8 Inch LCM 1920×1080 Display
    • 60Hz Frame Rate Auo Tft Lcd G238HAN01.1 AUO 23.8 Inch LCM 1920×1080 Display
  • 60Hz Frame Rate Auo Tft Lcd G238HAN01.1 AUO 23.8 Inch LCM 1920×1080 Display

    Product Details:

    Place of Origin: KOREA
    Brand Name: AUO
    Certification: ISO9001
    Model Number: G238HAN01.1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Brand: AUO Model: G238HAN01.1
    Diagonal Size: 23.8 Inch Type: A-Si TFT-LCD, LCM
    Pixel Format: 1920(RGB)×1080 [FHD] Frame Rate: 60Hz

    G238HAN01.1 AUO 23.8 inch  LCM  1920×1080  LCD  display



    AUO G238HAN01.1 Optical Features

    Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
    400 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 14 (Typ.)(G to G)
    Best View on Display Mode Contrast Ratio
    Symmetry AHVA, Normally Black, Transmissive 1000 : 1 (Typ.) (Transmissive)
    Dispaly Color : Color Gamut Display Colors White Coordinate
    72% NTSC (CIE1931) 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
    White Variation : 1.25/1.33 (Typ./Max.)(9 points)



    AUO G238HAN01.1 Mechanical Features

    Panel Size : 23.8"
    Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
    1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.2745×0.2745 0.0915×0.2745
    Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
    527.04(H) × 296.46(V) 530.2(H) × 299.6(V) 543(H) × 317.4(V) 8.4/11.65 (Typ./Max.) mm
    Outline Features : Form Factor Orientation Aspect Ratio Shape Style
    Flat Rectangle Landscape type 16:9 (H:V) -
    Mounting : Side mounting holes (4-M3) on left, right bezel
    Other Detail : Weight Panel Cover Treatment
    2.30Kgs (Typ.) - Antiglare, Hard coating (3H)





    AUO G238HAN01.1 Electronics Features

    Reverse Scan : No
    Vertical Frequency : 60Hz
    Power Consumption : 19.3W (Typ.)



    We also have other industrial LCD panels, pls contact to us for the further information
