Durable Sharp Replacement Lcd Panel LS035Y8DX02A SHARP CG- Silicon 60 Hz

Durable Sharp Replacement Lcd Panel LS035Y8DX02A SHARP CG- Silicon 60 Hz

    • Durable Sharp Replacement Lcd Panel LS035Y8DX02A SHARP CG- Silicon 60 Hz
    • Durable Sharp Replacement Lcd Panel LS035Y8DX02A SHARP CG- Silicon 60 Hz
  • Durable Sharp Replacement Lcd Panel LS035Y8DX02A SHARP CG- Silicon 60 Hz

    Product Details:

    Place of Origin: Japan
    Brand Name: SHARP
    Certification: ISO9001
    Model Number: LS035Y8DX02A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: LS035Y8DX02A Panel Brand: SHARP
    Descrition: 480×800 Panel Type: CG-Silicon
    Active Area: 45.36×75.6 Mm Outline: 51.16×86.45 Mm

    New and original LS035Y8DX02A SHARP CG-Silicon ,3.5 inch, 480×800 for 60 Hz

    LS035Y8DX02A Basic Information

    Panel Model LS035Y8DX02A
    Panel Brand SHARP
    Descrition CG-Silicon ,3.5 inch, 480×800
    Panel Type CG-Silicon
    Operating Temperature -20 ~ 70 °C
    Storage Temperature -30 ~ 80 °C





    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.

    LS035Y8DX02A Mechanical Features

    Dot Resolution 480(RGB)×800 (WVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 268 PPI
    Aspect Ratio 3:5 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0315×0.0945 mm (H×V)
    Pixel Pitch 0.0945×0.0945 mm (H×V)
    Weight 16.6g (Typ.)
    Active Area 45.36×75.6 mm (H×V)
    Outline Dimension 51.16×86.45 mm (H×V)
    Outline Depth 2.0 (Typ.) mm
    Landscape or Portrait Portrait type
    Touch Panel Without



    Our Service

    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing

    • Competitive price for different brands hard disk.

    • Mass stock with the better price.

    • Multiple options.

    • Warranty service.

    • Better team to provide the before-sales, on-sale and after-sale service

    • Pls send us message if any hard disk needed.

    LS035Y8DX02A Optical Features

    Display Mode ASV, Normally Black, Transflective
    Brightness 500 cd/m² (Typ.)
    Contrast Ratio 10:1 (Typ.) (Reflective)
    Display Color 16.7M (8-bit)
    Color Gamut 50% NTSC (CIE1931)
    Response Time 11/24 (Typ.)(Tr/Td)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity Wx:0.290; Wy:0.310
    White Variation 1.25 (Typ.)(9 points)
    Reflectance Ratio 1.5% (Typ.)
    Sunlight Readable Y



    The reasons you choose us

    1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h

    ard-to-find LCD panels.

    2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
    3).Fast delievery! Delivery time will be faster than others.
    4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
    5).Best sale-service! Professional team to service with you before sale, on sale & after service.

    LS035Y8DX02A Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No
    Driver IC Built-in R63302







    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    LK460D3HC09 SHARP 46" 1920×1080
    LS0DDPKP007 SHARP 2.5" 320×240
    LK315T3HA68 SHARP 31.5" 1366×768
    LK315D3HA19 SHARP 31.5" 1920×1080
    LK315T3LW50T SHARP 31.5" 1366×768
    LK400D3HC34J SHARP 40" 1920×1080
    LK400D3HC34K SHARP 40" 1920×1080
    LK315T3HA49S SHARP 31.5" 1366×768

    We also have other industrial LCD panels, pls contact to us for the further information

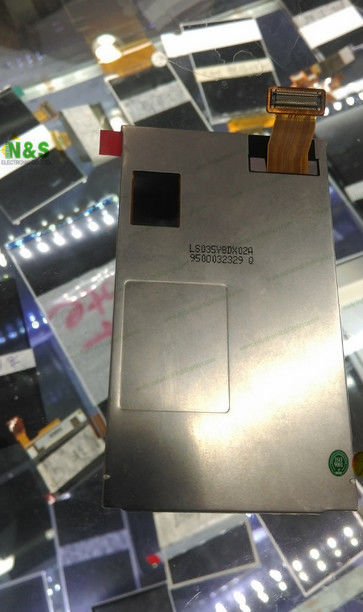

    LS035Y8DX02A pictures



    Durable Sharp Replacement Lcd Panel LS035Y8DX02A SHARP CG- Silicon 60 HzDurable Sharp Replacement Lcd Panel LS035Y8DX02A SHARP CG- Silicon 60 Hz
