TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface

TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface
TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface

Large Image :  TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface

Product Details:
Place of Origin: Japan
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM035HBHT1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
Delivery Time: 1-3 Working Days

TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface

Description
Panel Model: TM035HBHT1 Panel Brand: TIANMA
Descrition: 240×320 Panel Type: A-Si TFT-LCD
Active Area: 53.64×71.52 Mm Outline: 64×85×4.43 Mm
High Light:

lcd display white screen

,

lcd panel screen

New and original TM035HBHT1 TIANMA a-Si TFT-LCD ,3.5 inch, 240×320 for Medical Imaging



TM035HBHT1 Basic Information

Panel Model TM035HBHT1
Panel Brand TIANMA
Descrition a-Si TFT-LCD ,3.5 inch, 240×320
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 60 °C
Storage Temperature -30 ~ 70 °C
Remarks Left side FPC (17.00mm length)





N&S supplies integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display

TM035HBHT1 Mechanical Features

Dot Resolution 240(RGB)×320 (QVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 113 PPI
Aspect Ratio 3:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0745×0.2235 mm (H×V)
Pixel Pitch 0.2235×0.2235 mm (H×V)
Weight TBD
Surface Hard coating
Active Area 53.64×71.52 mm (H×V)
Outline Dimension 64×85 mm (H×V)
Outline Depth 4.13±0.3 mm
Landscape or Portrait Portrait type
Touch Panel Embeded (4-wire Resistive)



Our Service

1. Small quantity also can be provided.

2. New models can be updated fast.
3. We have strict QC team to make sure all products are qualified before delivery.
4. Warranty promise

5. Sourcing line for different hard disks for different brands.

TM035HBHT1 Optical Features

Display Mode ECB, Normally White, Transflective
Brightness 80 cd/m² (Typ.)
Contrast Ratio 6.5:1 (Typ.) (Reflective)
Display Color 262K (6-bit)
Response Time 35 (Typ.)(Tr+Td)
Viewing Angle 40/45/55/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.301; Wy:0.321
Reflectance Ratio 7% (Typ.)
Sunlight Readable Y



The reasons you choose us

1).Mor e competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the h

ard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

TM035HBHT1 Electronics Feature

Reverse Scan No
Time Controller (T-CON) Embedded T-CON





Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TM046JYHP02 Tianma 4.7" 720×1280
TM045YYSA02 Tianma 4.5" 480×854
TM050XYS01 Tianma 5.0" 272×480
TM035PYS01 Tianma 3.5" 320×480
TM032HYH01 Tianma 3.2" 240×320
TL060JYXP02 Tianma 9.0" 720×1280
TL055VYXP02 Tianma 5.5" 1080×1920
TM024HYH01 Tianma 2.4" 240×320

We also have other industrial LCD panels, pls contact to us for the further information

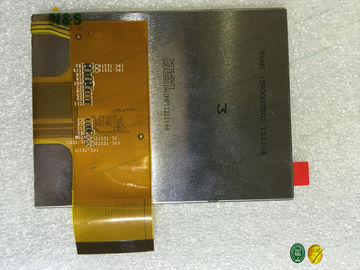

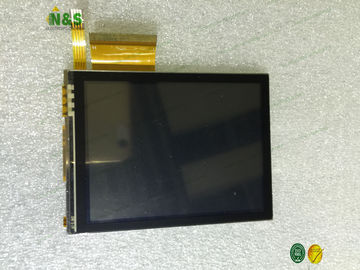

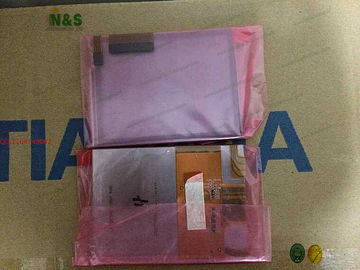

TM035HBHT1  pictures

TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface 0TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface 1TM035HBHT1 Tianma LCD Displays 3.5 Inch 240×320 Embeded Touch Panel Hard Coating Surface 2
