Product Details:
|
| Panel Model: | LS013B7DH01 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 144×168 | Panel Type: | CG-Silicon |
| Display Mode: | Transflective | Active Area: | 20.88×24.36 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
New and original LS013B7DH01 SHARP CG-Silicon ,1.26 inch, 144×168 for Industrial Application
| Panel Model | LS013B7DH01 |
|---|---|
| Panel Brand | SHARP |
| Descrition | CG-Silicon ,1.26 inch, 144×168 |
| Panel Type | CG-Silicon |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Memory LCD |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
| Dot Resolution | 144×168 |
|---|---|
| Pixel Configuration | Rectangle |
| Pixel Density | 175 PPI |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.145×0.145 mm (H×V) |
| Pixel Pitch | 0.145×0.145 mm (H×V) |
| Weight | 3.00g (Typ.) |
| Surface | Hard coating (3H) |
| Active Area | 20.88×24.36 mm (H×V) |
| Outline Dimension | 24.88×33 mm (H×V) |
| Outline Depth | 1.64±0.11 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
| Display Mode | Transflective |
|---|---|
| Contrast Ratio | 20:1 (Typ.) (Reflective) |
| Display Color | Monochrome (1-bit) |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.307; Wy:0.330 |
| Transmissivity | 0.45% (Typ.)(with Polarizer) |
| Reflectance Ratio | 14.5% (Typ.) |
| Sunlight Readable | Y |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
| Lamp Type | No B/L |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM641521 | SHARP | 9.4" | 640×480 |
| LM64P83L | SHARP | 9.4" | 640×480 |
| LM057QB1T073 | SHARP | 5.7" | 320×240 |
| LM24P20 | SHARP | 5.7" | 240×128 |
| LM32C041 | SHARP | 5.5" | 320×240 |
| LM10V332 | SHARP | 10.4" | 640×480 |
| LM32019T | SHARP | 5.7" | 320×240 |
| LM64C219 | SHARP | 8.0" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information

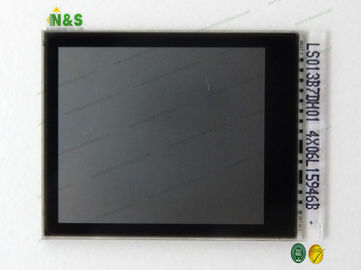

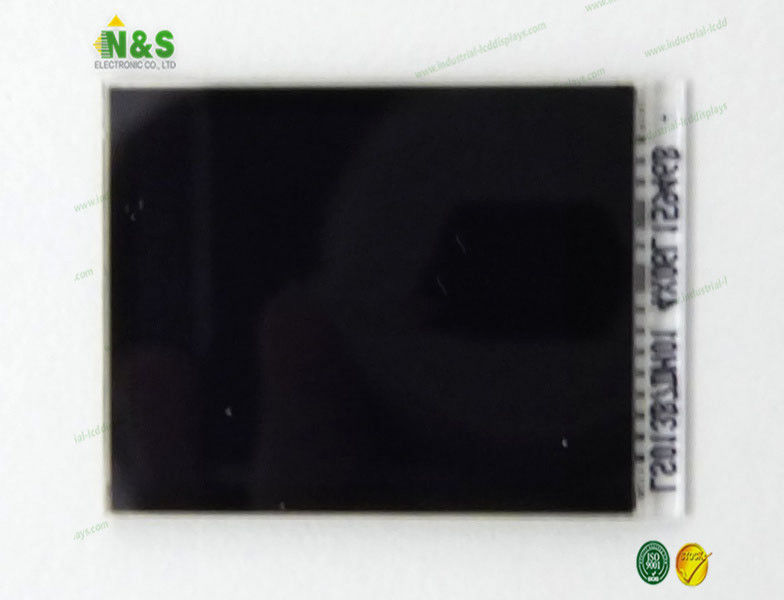

LS013B7DH01 pictures
