Product Details:
|
| Panel Model: | LQ088H9DR01 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 640×240 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 209.28×78.48 Mm | Outline: | 231.6×103.6 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
New and original LQ088H9DR01 SHARP a-Si TFT-LCD ,8.8 inch, 640×240 for Medical Imaging
| Panel Model | LQ088H9DR01 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,8.8 inch, 640×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
| Remarks | AD-TFT (Advanced TFT) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Dot Resolution | 640(RGB)×240 (HVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 77 PPI |
| Aspect Ratio | 8:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.109×0.327 mm (H×V) |
| Pixel Pitch | 0.327×0.327 mm (H×V) |
| Weight | 370g (Max.) |
| Active Area | 209.28×78.48 mm (H×V) |
| Outline Dimension | 231.6×103.6 mm (H×V) |
| Outline Depth | 14.4 (Typ.) mm |
| Landscape or Portrait | Landscape type |
Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 220 cd/m² (Typ.) |
| Display Color | 262K (6-bit) |
| Sunlight Readable | Y |
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
| Total Power Consumption | 7.0W (Typ.) |
|---|
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM7M633 | SHARP | 6.5" | 640×240 |
| LM050QC1T01 | SHARP | 5.0" | 320×240 |
| LM130SS1T611 | SHARP | 13.0" | 800×600 |
| LM8M64 | SHARP | 8.1" | 640×240 |
| LM320192 | SHARP | 5.7" | 320×240 |
| LM64185P | SHARP | 9.4" | 640×480 |
| LM18WGSBZ05 | SHARP | 1.8" | 120×160 |
| LM057QC1T01 | SHARP | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

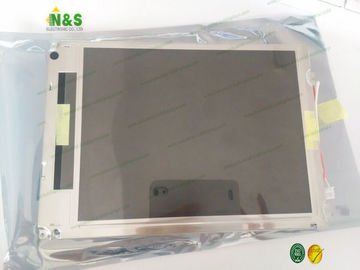

LQ088H9DR01 pictures
