Product Details:
|
| Panel Model: | LQ088K9LA02 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 1280×480 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 209.28×78.48 Mm | Outline: | 231.6×94.7 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
New and original LQ088K9LA02 SHARP a-Si TFT-LCD ,8.8 inch, 1280×480 for Medical Imaging
| Panel Model | LQ088K9LA02 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,8.8 inch, 1280×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -40 ~ 85 °C |
| Storage Temperature | -40 ~ 95 °C |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
| Dot Resolution | 1280(RGB)×480 (DVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 155 PPI |
| Aspect Ratio | 8:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0545×0.1635 mm (H×V) |
| Pixel Pitch | 0.1635×0.1635 mm (H×V) |
| Weight | 320g (Max.) |
| Surface | Antiglare, Antireflection |
| Active Area | 209.28×78.48 mm (H×V) |
| Bezel Area | 213.0×81.0 mm (H×V) |
| Outline Dimension | 231.6×94.7 mm (H×V) |
| Outline Depth | 11.25 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
| Display Mode | Normally Black, Transflective |
|---|---|
| Brightness | 240 cd/m² (Typ.) |
| Contrast Ratio | 5:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 5/5 (Typ.)(Tr/Td) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| White Variation | 1.25/1.30 (Typ./Max.)(9 points) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM32K10 | SHARP | 4.7" | 320×240 |
| LM32P07 | SHARP | 5.7" | 320×240 |
| LM64P722 | SHARP | 9.4" | 640×480 |
| LM64C12P | SHARP | 9.4" | 640×480 |
| LM64K103 | SHARP | 7.2" | 640×480 |
| LM64P70 | SHARP | 8.5" | 640×480 |
| LM5Q32 | SHARP | 5.0" | 320×240 |
| LM011LB1H03 | SHARP | 1.2" | 112×64 |
We also have other industrial LCD panels, pls contact to us for the further information

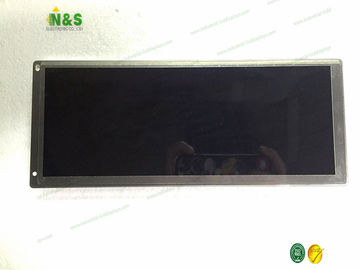

LQ088K9LA02 pictures
