Product Details:
|
| Panel Model: | LQ065T5AR07 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 400×234 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 143.4×79.326 Mm | Outline: | 155×89.2 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ065T5AR07 SHARP a-Si TFT-LCD ,6.5 inch, 400×234 for Medical Imaging
| Panel Model | LQ065T5AR07 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,6.5 inch, 400×234 |
| Panel Type | a-Si TFT-LCD |
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
| Dot Resolution | 400(RGB)×234 |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 71 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1195×0.339 mm (H×V) |
| Pixel Pitch | 0.3585×0.339 mm (H×V) |
| Active Area | 143.4×79.326 mm (H×V) |
| Outline Dimension | 155×89.2 mm (H×V) |
| Outline Depth | 16.0 (Typ.) mm |
| Landscape or Portrait | Landscape type |
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4long-term partner:
* Products are sold to more than 20 countries.
5Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 420 cd/m² (Typ.) |
| Contrast Ratio | 60 : 1 (Min.) (Transmissive) |
| Display Color | Full color () |
| Sunlight Readable | N |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Signal Category | Analog |
|---|---|
| Signal Class | TFT Specific Analog RGB |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM80C27 | SHARP | 11.3" | 800×600 |
| LM038QBTS10 | SHARP | 3.8" | 320×240 |
| LM038QC1R10 | SHARP | 3.8" | 320×240 |
| LM038QC1T10 | SHARP | 3.8" | 320×240 |
| LM038QB1R10 | SHARP | 3.8" | 320×240 |
| LM030LB1S02 | SHARP | 3.0" | 160×160 |
| LM057QCTT03 | SHARP | 5.7" | 320×240 |
| LM057QBTT05 | SHARP | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information

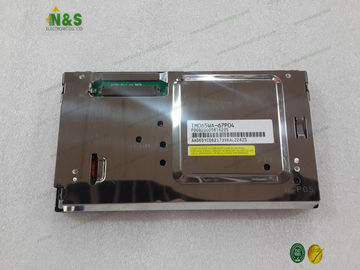

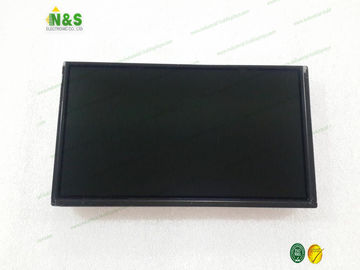

LQ065T5AR07 pictures
