Product Details:
|
| Panel Model: | NL2432HC22-41K | Panel Brand: | NEC |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 53.64×71.52 Mm | Outline: | 63.5×85×7 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL2432HC22-41K NEC a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application
| Panel Model | NL2432HC22-41K |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 70 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | SR-NLT, left side 3 in 1 FPC (15mm) |
Packing & Delivery for our LCD Screen Panel Replacements:
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 43.0/45.0g (Typ./Max.) |
| Surface | Clear, Hard coating (3H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.64×76.52 mm (H×V) |
| Outline Dimension | 63.5×85 mm (H×V) |
| Outline Depth | 4.2/7.0 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Quality Control:
Make sure No damage, No Scratches, No dusty, No light leakage.
Make sure all functions are 100% tested ok
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 15:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle | 30/30/30/35 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| White Variation | 1.43/1.67 (Typ./Max.)(9 points) |
| Reflectance Ratio | 8/15% (Min./Typ.) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 434mW (Typ.) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL128102BC28-01 | NLT | 18.1" | 1280×1024 |
| NL128102BC23-03 | NLT | 15.4" | 1280×1024 |
| NL128102BC23-02A | NLT | 15.4" | 1280×1024 |
| NL128102BC23-02 | NLT | 15.4" | 1280×1024 |
| NL128102AC31-02E | NLT | 20.1" | 1280×1024 |
| NL128102AC31-02A | NLT | 20.1" | 1280×1024 |
| NL128102AC31-01E | NLT | 20.1" | 1280×1024 |
| NL128102AC31-01B | NLT | 20.1" | 1280×1024 |
We also have other industrial LCD panels, pls contact to us for the further information

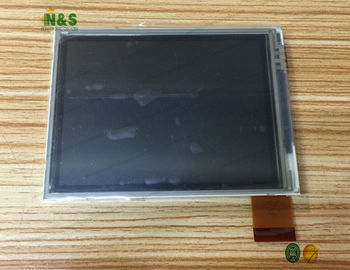

NL2432HC22-41K pictures
