Product Details:
|
| Panel Model: | NL2432HC22-44B | Panel Brand: | NEC |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 53.64×71.52 Mm | Outline: | 63.5×85×5.7 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
New and original NL2432HC22-44B NEC a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application
| Panel Model | NL2432HC22-44B |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | SR-NLT, left side 3 in 1 FPC (15mm) |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 43/45g (Typ./Max.) |
| Surface | Clear, Hard coating (3H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.64×76.52 mm (H×V) |
| Outline Dimension | 63.5×85 mm (H×V) |
| Outline Depth | 4.2/5.7 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 15:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle | 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| Reflectance Ratio | 15% (Typ.) |
| Sunlight Readable | Y |
Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 434mW (Typ.) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL128102BM29-08 | NLT | 19.0" | 1280×1024 |
| NL128102BM29-05 | NLT | 19.0" | 1280×1024 |
| NL128102BC29-10C | NLT | 19.0" | 1280×1024 |
| NL128102BC29-01 | NLT | 19.0" | 1280×1024 |
| NL128102BC28-09S | NLT | 18.1" | 1280×1024 |
| NL128102BC28-09 | NLT | 18.1" | 1280×1024 |
| NL128102BC28-07 | NLT | 18.1" | 1280×1024 |
| NL128102BC28-04 | NLT | 18.1" | 1280×1024 |
We also have other industrial LCD panels, pls contact to us for the further information

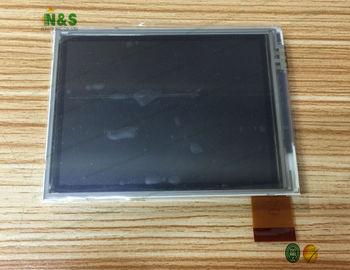

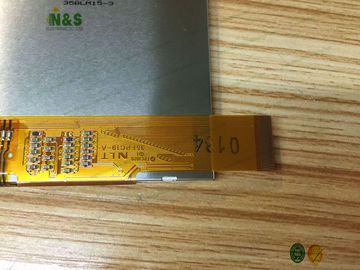

NL2432HC22-44B pictures
