Product Details:
|
| Panel Model: | NL2432HC22-41B | Panel Brand: | NEC |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 53.64×71.52 Mm | Outline: | 63.5×85×5.7 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL2432HC22-41B NEC a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application
| Panel Model | NL2432HC22-41B |
|---|---|
| Panel Brand | NEC |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Vibration Resistance | 2.0G (19.6 m/s²) |
| Remarks | R-EVT (SR-NLT), left side 3 in 1 FPC (15mm) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 43/45g (Typ./Max.) |
| Surface | Clear, Hard coating (3H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.64×76.52 mm (H×V) |
| Outline Dimension | 63.5×85 mm (H×V) |
| Outline Depth | 4.2/5.7 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Embeded (4-wire Resistive) |
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 15:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 7/23 (Typ.)(Tr/Td) |
| Viewing Angle | 30/30/30/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| White Variation | 1.43/1.67 (Typ./Max.)(9 points) |
| Reflectance Ratio | 15% (Typ.) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | No |
| Total Power Consumption | 434mW (Typ.) |
| Time Controller (T-CON) | Embedded T-CON |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL160120AC26-01A | NLT | 20.3" | 1600×1200 |
| NL160120AC26-01 | NLT | 20.3" | 1600×1200 |
| NL12876BC26-25B | NLT | 15.3" | 1280×768 |
| NL12876BC26-22F | NLT | 15.3" | 1280×768 |
| NL12876BC26-22E | NLT | 15.3" | 1280×768 |
| NL12876BC26-22D | NLT | 15.3" | 1280×768 |
| NL12876BC26-22 | NLT | 15.3" | 1280×768 |
| NL12876BC26-21 | NLT | 15.3" | 1280×768 |
We also have other industrial LCD panels, pls contact to us for the further information

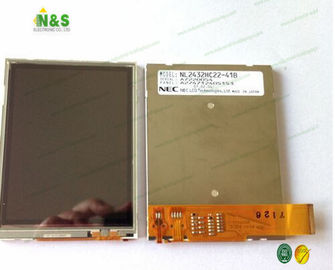

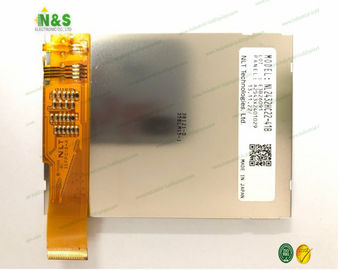

NL2432HC22-41B pictures
