Product Details:
|
| Panel Model: | LQ038Q7DB03 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 57.6×76.8 Mm | Outline: | 69×88.6 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||
LQ038Q7DB03 SHARP a-Si TFT-LCD ,3.8 inch, 240×320 for Medical Imaging
| Panel Model | LQ038Q7DB03 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,3.8 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -25 ~ 70 °C |
| Remarks | AD-TFT (Advanced TFT) |
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 42g (Typ.) |
| Surface | Hard coating (3H) |
| Active Area | 57.6×76.8 mm (H×V) |
| Bezel Area | 61.2×80.4 mm (H×V) |
| Outline Dimension | 69×88.6 mm (H×V) |
| Outline Depth | 3.4 (Typ.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 90 cd/m² (Typ.) |
| Contrast Ratio | 8:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/40 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White Variation | 1.17/1.33 (Typ./Max.)(9 points) |
| Reflectance Ratio | 7/11% (Min./Typ.) |
| Sunlight Readable | Y |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM057QB1T07 | SHARP | 5.7" | 320×240 |
| LM046QB1S02 | SHARP | 4.6" | 320×240 |
| LM100SS1T562 | SHARP | 10.0" | 800×600 |
| LM12S472 | SHARP | 12.1" | 800×600 |
| LM082VC1T01 | SHARP | 8.2" | 640×480 |
| LM081HB1T01 | SHARP | 8.1" | 640×240 |
| LM80C36 | SHARP | 12.1" | 800×600 |
| LM80C312 | SHARP | 12.1" | 800×600 |
We also have other industrial LCD panels, pls contact to us for the further information

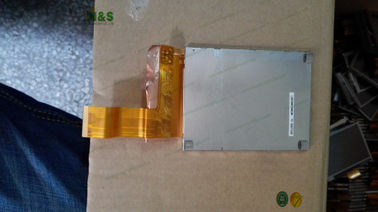

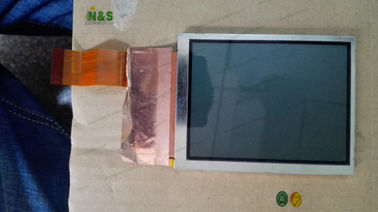

LQ038Q7DB03 pictures
