3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz

3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz
3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz 3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz 3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz

Large Image :  3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz

Product Details:
Place of Origin: KOREA
Brand Name: SHARP
Certification: ISO9001
Model Number: LS037V7DW01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz

Description
Panel Model: LS037V7DW01 Panel Brand: SHARP
Descrition: 480×640 Panel Type: CG-Silicon
Active Area: 56.16×74.88 Mm Outline: 65×89.2×6.4 Mm
High Light:

sharp lcd display panels

,

sharp lcd screen

New and original LS037V7DW01 SHARP CG-Silicon ,3.7 inch, 480×640 for 60Hz



LS037V7DW01 Basic Information

Panel Model LS037V7DW01
Panel Brand SHARP
Descrition CG-Silicon ,3.7 inch, 480×640
Panel Type CG-Silicon
Operating Temperature -10 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Remarks VGA/QVGA mode selectable,8/262K color selectable



Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

LS037V7DW01 Mechanical Features

Dot Resolution 480(RGB)×640 (VGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 217 PPI
Aspect Ratio 3:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.039×0.117 mm (H×V)
Pixel Pitch 0.117×0.117 mm (H×V)
Weight 48g (Typ.)
Surface Hard coating (3H)
Active Area 56.16×74.88 mm (H×V)
Bezel Area 59.8×78.5 mm (H×V)
Outline Dimension 65×89.2 mm (H×V)
Outline Depth 4.4/6.4 (Typ./Max.) mm
Landscape or Portrait Portrait type
Touch Panel Embeded (4-wire Resistive)



Return and Refund:

(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

LS037V7DW01 Optical Features

Display Mode Normally Black, Transflective
Brightness 165 cd/m² (Typ.)
Contrast Ratio 2:1 (Typ.) (Reflective)
Display Color 262K (6-bit)
Color Gamut 35% NTSC (CIE1931)
Response Time 15/20 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D)
Viewing Direction Symmetry
White Variation 1.67 (Max.)(9 points)
Reflectance Ratio 2/4% (Min.Typ.)
Sunlight Readable Y



Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.



LS037V7DW01 Electronics Feature

Reverse Scan Yes (U/D, L/R)







Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LM64K101 SHARP 7.2" 640×480
LM64K111 SHARP 6.0" 640×480
LM64P80 SHARP 9.4" 640×480
LM64P839 SHARP 9.4" 640×480
LM050QC1T03 SHARP 5.0" 320×240
LM10V331 SHARP 10.4" 640×480
LM10V35N SHARP 10.4" 640×480
LM32K071 SHARP 5.7" 320×240

We also have other industrial LCD panels, pls contact to us for the further information

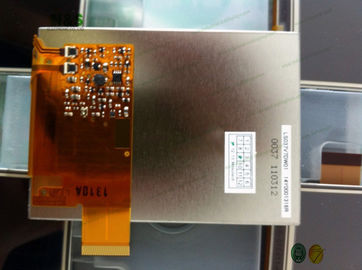

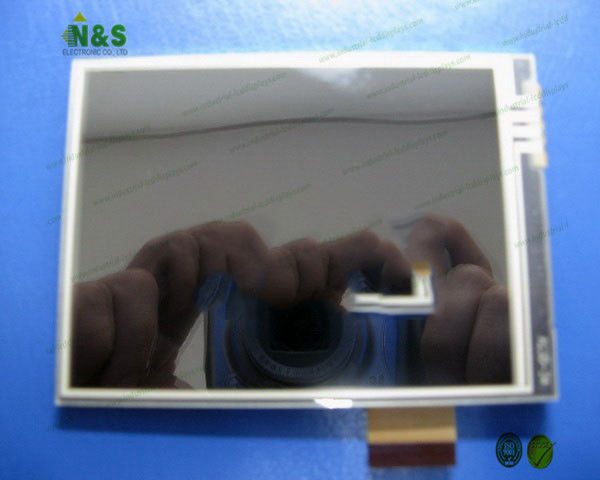

LS037V7DW01pictures



3.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz 03.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz 13.7 Inch 480×640 Sharp LCD Screen Replacement LS037V7DW01 CG- Silicon 60Hz 2
