Product Details:
|
| Panel Model: | LQ035Q7DB05 | Panel Brand: | SHARP |
|---|---|---|---|
| Descrition: | 240×320 | Panel Type: | A-Si TFT-LCD |
| Active Area: | 53.64×71.52 Mm | Outline: | 65×85×3.7 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
New and original LQ035Q7DB05 SHARP a-Si TFT-LCD ,3.5 inch, 240×320 for Medical Imaging
| Panel Model | LQ035Q7DB05 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,3.5 inch, 240×320 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 60 °C |
| Storage Temperature | -25 ~ 70 °C |
| Remarks | AD-TFT (Advanced TFT) |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Dot Resolution | 240(RGB)×320 (QVGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 113 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch | 0.2235×0.2235 mm (H×V) |
| Weight | 40g (Typ.) |
| Surface | Hard coating (3H) |
| Active Area | 53.64×71.52 mm (H×V) |
| Bezel Area | 57.4×75.2 mm (H×V) |
| Outline Dimension | 65×85 mm (H×V) |
| Outline Depth | 3.4±0.3 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
| Display Mode | TN, Normally White, Transflective |
|---|---|
| Brightness | 160 cd/m² (Typ.) |
| Contrast Ratio | 15:1 (Typ.) (Reflective) |
| Display Color | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.300; Wy:0.320 |
| Reflectance Ratio | 8/13% (Min./Typ.) |
| Sunlight Readable | Y |
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (U/D, L/R) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM32007T | SHARP | 5.7" | 320×240 |
| LM64P103 | SHARP | 7.2" | 640×480 |
| LM64P102 | SHARP | 7.2" | 640×480 |
| LM64P89 | SHARP | 10.4" | 640×480 |
| LM64P832 | SHARP | 9.4" | 640×480 |
| LM64P831 | SHARP | 9.4" | 640×480 |
| LM64P835 | SHARP | 9.4" | 640×480 |
| LM64P122 | SHARP | 8.0" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information

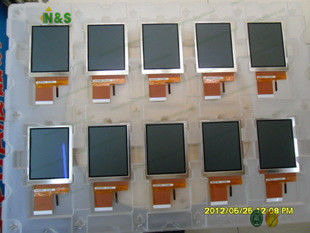

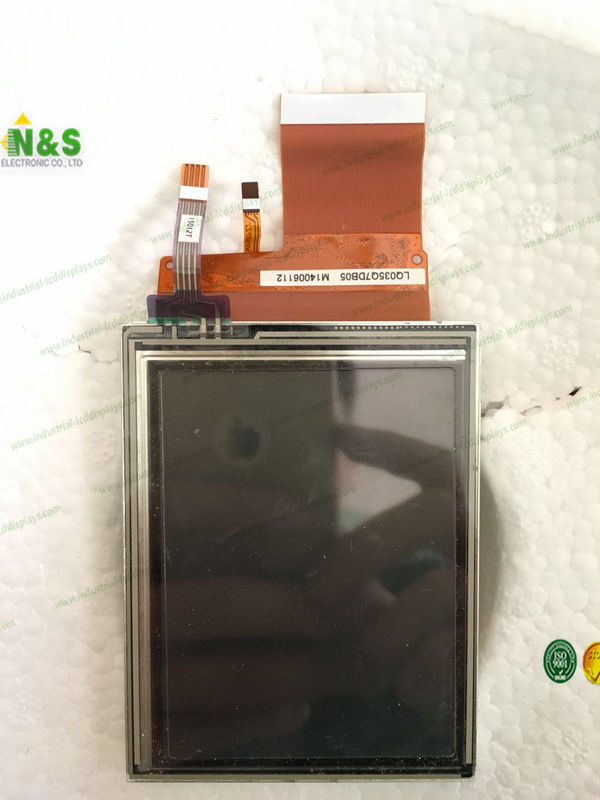

LQ035Q7DB05 pictures
