G185HAN01.0 AUO LCD Panel 18.5 Inch AUO A-Si TFT-LCD 1920×1080 For Medical Imaging

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

G185HAN01.0 AUO LCD Panel 18.5 Inch AUO A-Si TFT-LCD 1920×1080 For Medical Imaging

G185HAN01.0 AUO LCD Panel 18.5 Inch AUO A-Si TFT-LCD 1920×1080 For Medical Imaging
G185HAN01.0 AUO LCD Panel 18.5 Inch AUO A-Si TFT-LCD 1920×1080 For Medical Imaging G185HAN01.0 AUO LCD Panel 18.5 Inch AUO A-Si TFT-LCD 1920×1080 For Medical Imaging

Large Image :  G185HAN01.0 AUO LCD Panel 18.5 Inch AUO A-Si TFT-LCD 1920×1080 For Medical Imaging

Product Details:
Place of Origin: KOREA
Brand Name: AUO
Certification: ISO9001
Model Number: G185HAN01.0
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days

G185HAN01.0 AUO LCD Panel 18.5 Inch AUO A-Si TFT-LCD 1920×1080 For Medical Imaging

Description
Panel Model: G185HAN01.0 Panel Brand: AUO
Descrition: 1920×1080 Panel Type: A-Si TFT-LCD
Active Area: 409.8×230.4 Mm Outline: 430.4×254.6×12.5 Mm
High Light:

auo lcd screen

,

auo lcd display

G185HAN01.0 AUO a-Si TFT-LCD ,18.5 inch, 1920×1080 for Medical Imaging

G185HAN01.0 Basic Information

Panel Model G185HAN01.0
Panel Brand AUO
Descrition a-Si TFT-LCD ,18.5 inch, 1920×1080
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -20 ~ 70 °C



Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

G185HAN01.0 Mechanical Features

Dot Resolution 1920(RGBY)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 119 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.071×0.213 mm (H×V)
Pixel Pitch 0.213×0.213 mm (H×V)
Weight 1.20Kgs (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 409.8×230.4 mm (H×V)
Bezel Area 410.96×232.0 mm (H×V)
Outline Dimension 430.4×254.6 mm (H×V)
Outline Depth 12.0±0.5 mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without


Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Feedback:

G185HAN01.0 Optical Features

Display Mode AHVA, Normally Black, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut sRGB
Response Time 10/10 (Typ.)(Tr/Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.299; Wy:0.315
White Variation 1.18/1.25 (Typ./Max.)(9 points)
Sunlight Readable N


We can do for You:

  1. Quality Guarantee:

100% original new Hard Disk for you.
2.Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3.Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4.After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

G185HAN01.0 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 16.5W (Typ.)


Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T550QVN03.0 CELL AUO 55" 3840×2160
T550QVR01.0 CELL AUO 55" 3840×2160
T550QVN02.3 CELL AUO 55" 3840×2160
T550QVN02.2 CELL AUO 55" 3840×2160
T550QVN02.1 CELL AUO 55" 3840×2160
T650QVN03.0 CELL AUO 65" 3840×2160
T650QVN02.1 CELL AUO 65" 3840×2160
T650QVN02.0 CELL AUO 65" 3840×2160


We also have other industrial LCD panels, pls contact to us for the further information

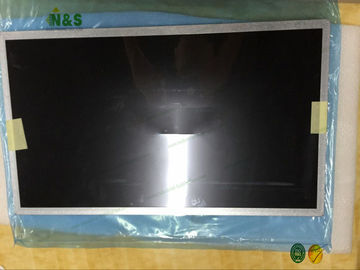

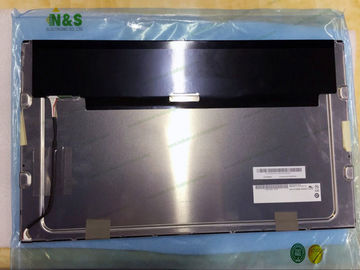

G185HAN01.0  pictures
